Toro  |  SKU: 68037

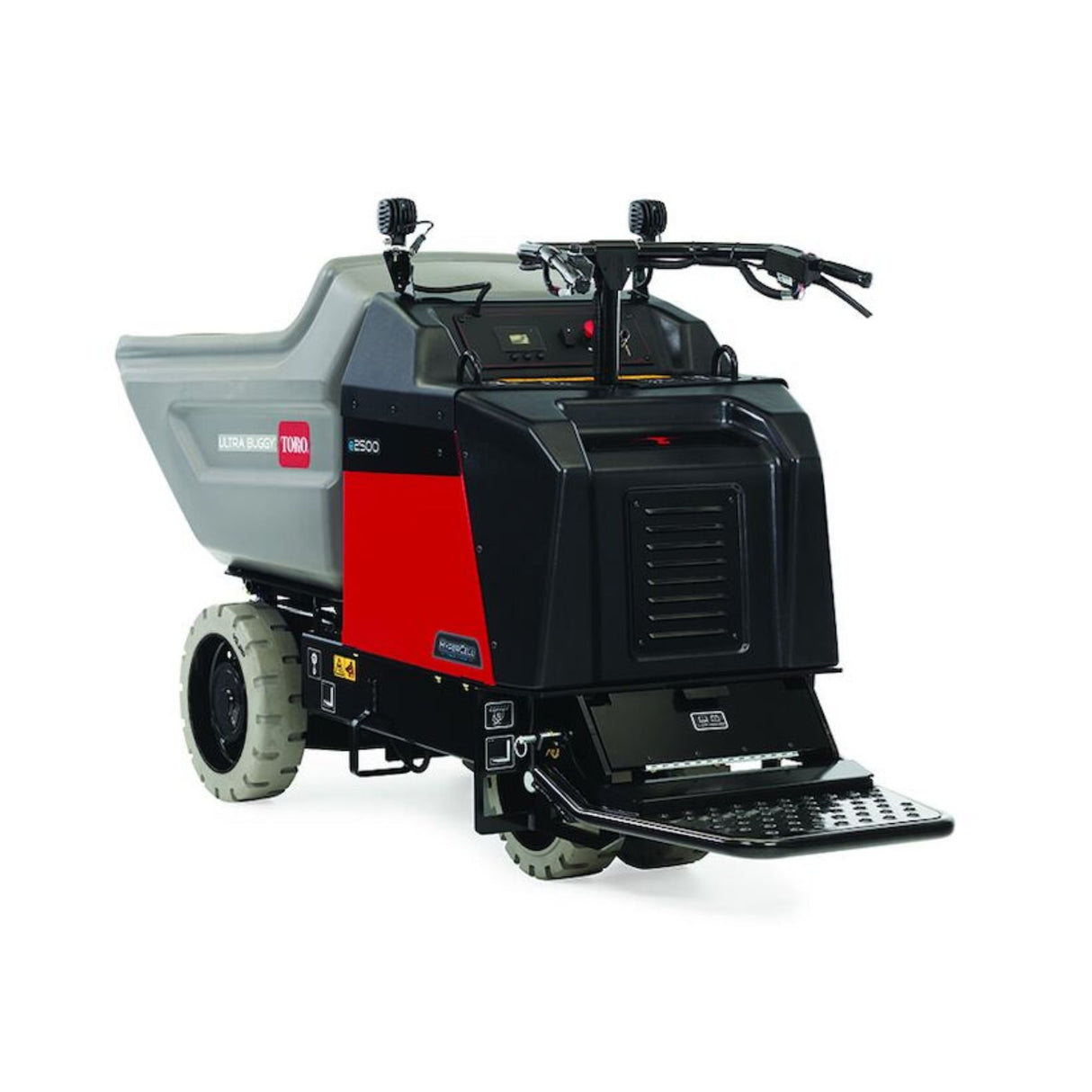

Toro Ultra Buggy e2500 | Toro HyperCell | 68037

$33,33500
Taxes and shipping calculated at checkout.

WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov

Exceptional runtime and a compact nature make it nimble and convenient, electric power eliminates engine exhaust emissions, and the thick, polyethylene tub handles all types of material. The electric Ultra Buggy is powered by HyperCell®, a battery system developed by Toro, to match the power of our traditional gas powered products and is optimized to deliver an exceptional eight-hour continuous runtime, allowing it to run as long as your crew.

  • HyperCell Power System® delivers up to 8 hours of continuous runtime.
  • Compact footprint easily clears hard to reach areas.
  • Unbeatable 2,500 pound carrying capacity.

Specifications

Battery Capacity 7 kWh
Battery Charging Requirements 15 amps at 120V
Battery Charging Time Up to 8 hours for full charge
Battery Charging Type 120V, on-board
Battery Chemistry Toro HyperCell Lithium Ion
Discharge Height 6.5 in. / 16.5 cm
Dump Position Straight
Fuel Type Electric
Height 45 in. / 114.3 cm
Length - Platform Down 111 in. / 281.9 cm
Length - Platform Up 94 in. / 238.8 cm
Maximum Load Capacity 2,500 lbs / 1,134 kg
Run Time Up to 8 continuous hours
Speed - Forward Up to 6 mph / 9.7 km/h
Speed - Reverse Up to 4 mph / 6.4 km/h
Tires Non-marking
Tub Material Polyethylene
Tub Volume 14 ft³ (0.4 m³)
Weight 1,530 lbs / 694 kg
Width With Dual Wheel 42 in. / 106.6 cm
Width With Single Wheel 31.5 in. / 80.65 cm



Recommended Maintenance Schedule

Maintenance

Service Interval

Maintenance Procedure

Part No.

Qty

Description

After the first 50 hours

Changing the Drive-Motor Gear Oil

144-6880

1

Gear oil

Before each use or daily

Check the hydraulic fluid level.

-

-

-

Removing Debris

-

-

-

Check for loose fasteners.

-

-

-

Every 40 hours

Checking the Anti-Static Strap

139-7731

1

Anti-static strap

Check the condition of the tires.

-

-

-

Check the lug nuts.

-

-

-

Check the hydraulic lines.

-

-

-

Every 50 hours

Grease and oil the machine.

-

-

-

Every 500 hours

Changing the Drive-Motor Gear Oil

144-6880

1

Gear oil

Change the hydraulic fluid.

505-136

1

Hydraulic fluid

Every 1,500 hours

Replace all moving hydraulic hoses.

144-1736

1

Hydraulic hose

144-1737

1

Hydraulic hose

Yearly or before storage

Touch up chipped paint.

361-9

1

Paint

361-10

1

Paint

Changing the Hydraulic Fluid

505-136

1

Hydraulic fluid
