Toro Ultra Buggy e2500-TS | Toro HyperCell | 68140
Toro Ultra Buggy e2500-TS | Toro HyperCell | 68140 is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at MSM - Clermont
WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov

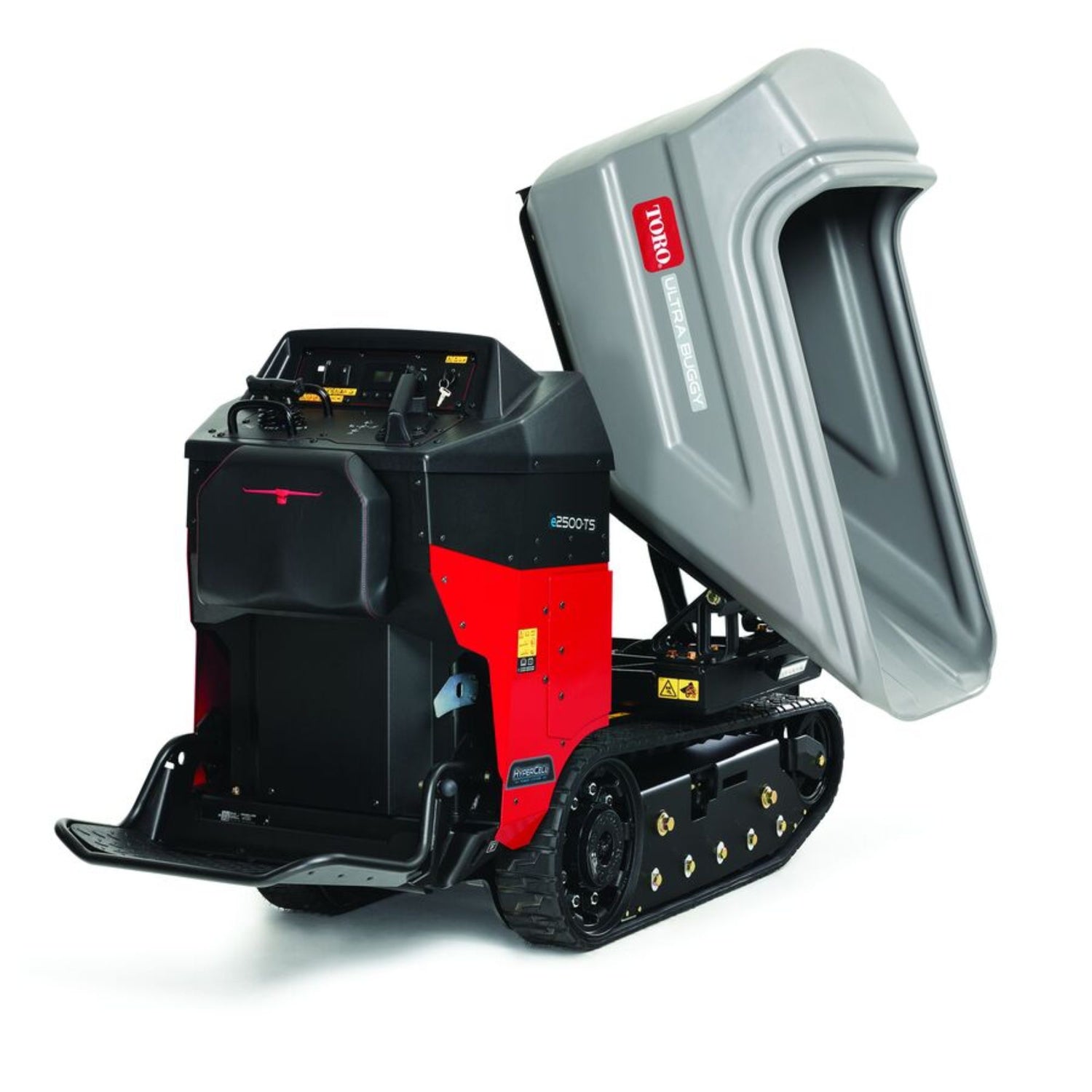

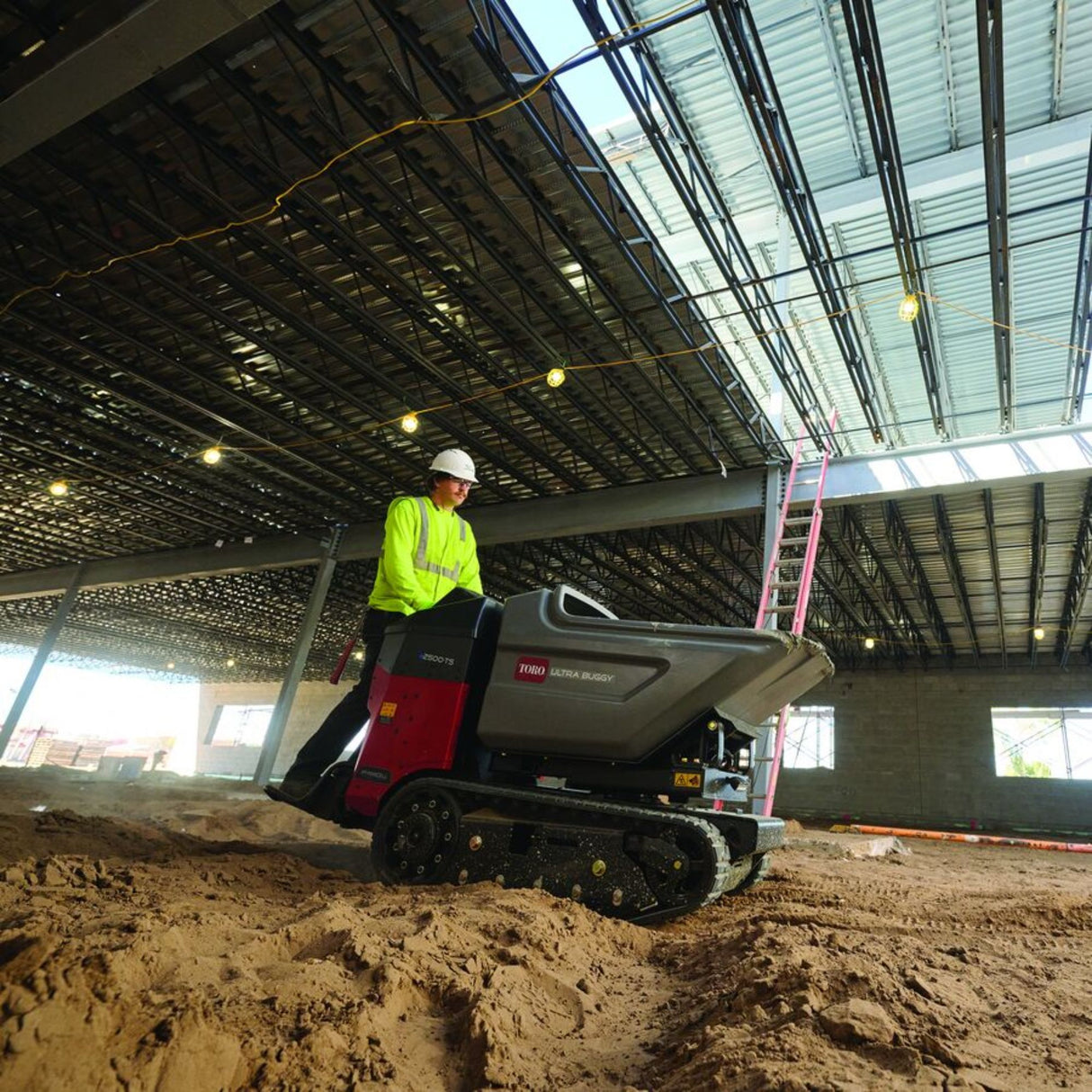

The electric swivel Ultra Buggy e2500-TS gives crews the flawless precision needed to transform jobsites. Operators can unload sand, gravel, concrete and other heavy materials along a 180-degree radius for ultimate precision from any angle. And it’s all powered by Toro’s patented HyperCell® battery technology that delivers up to eight hours of quiet runtime without sacrificing power. Crews will still enjoy the same 2,500-lb carrying capacity of gas models to reduce physical strain and accelerate efficiency on indoor or outdoor jobs.
- HyperCell Power System® delivers up to 8 hours of continuous runtime.
- Up to 2,500 lbs carrying capacity
- Outstanding 180-degree dump radius makes it easy for users to dump material anywhere along the 180-degree radius.
- Easily fits through standard doors and gates
Specifications
| Battery Capacity | 13 kWh |
|---|---|
| Battery Charging Requirements | 100-240 Volt, on-board |
| Battery Charging Time | Up to 6 hours for full charge |
| Battery Charging Type | 100-240 Volt, on-board |
| Battery Chemistry | Toro HyperCell Lithium Ion |
| Discharge Height | 17.8 in. / 45.2 cm |
| Distributed Floor Pressure - Loaded | 1.55 psi |
| Distributed Floor Pressure - Unloaded | 1.05 psi |
| Dump Position | Swivel |
| Fuel Type | Electric |
| Height | 52.1 in. / 132.3 cm |
| Length - Platform Down | 100.7 in. / 255.7 cm |
| Length - Platform Up | 87.9 in. / 223.2 cm |
| Max Load Capacity - Full Dump Height | 1,250 lbs / 567 kg |
| Max Load Capacity - Standard Dump Height | 2,500 lbs / 1,134 kg |
| Maximum Load Capacity | 2,500 lbs / 1,134 kg |
| Run Time | Up to 8 hours |
| Speed - Forward | Up to 5.0 mph / 8.0 kph |
| Speed - Reverse | Up to 3.0 mph / 4.8 kph |
| Tracks | Rugged armid corde |
| Tub Material | Polyethylene |
| Tub Volume | 14 ft³ (0.4 m³) |
| Weight | 2,080 lbs / 943.4 kg |
| Width | 31.5 in. / 80.65 cm |
Recommended Maintenance Schedule
|
Maintenance Service Interval |
Maintenance Procedure |
|
After the first 50 hours |
Change the drive-motor gear oil. |
|
Before each use or daily |
Check the swivel hydraulic fluid level. |
|
Check the high-lift hydraulic fluid level. |
|
|
Remove debris. |
|
|
Check for loose fasteners. |
|
|
Every 40 hours |
Check the hydraulic lines. |
|
Every 50 hours |
Grease and oil the machine. |
|
Every 500 hours |
Change the drive-motor gear oil. |
|
Change the swivel hydraulic fluid and filter. |
|
|
Change the high-lift hydraulic fluid and filter. |
|
|
Change the swivel hydraulic filter. |
|
|
Change the high-lift hydraulic filter. |
|
|
Every 1,500 hours |
Replace all moving hydraulic hoses. |
|
Yearly or before storage |
Touch up chipped paint. |
|
|
|
|
Change the swivel hydraulic fluid. |
|
|
Change the high-lift hydraulic fluid. |
|
|
Change the swivel hydraulic filter. |
|
|
Change the high-lift hydraulic filter. |
