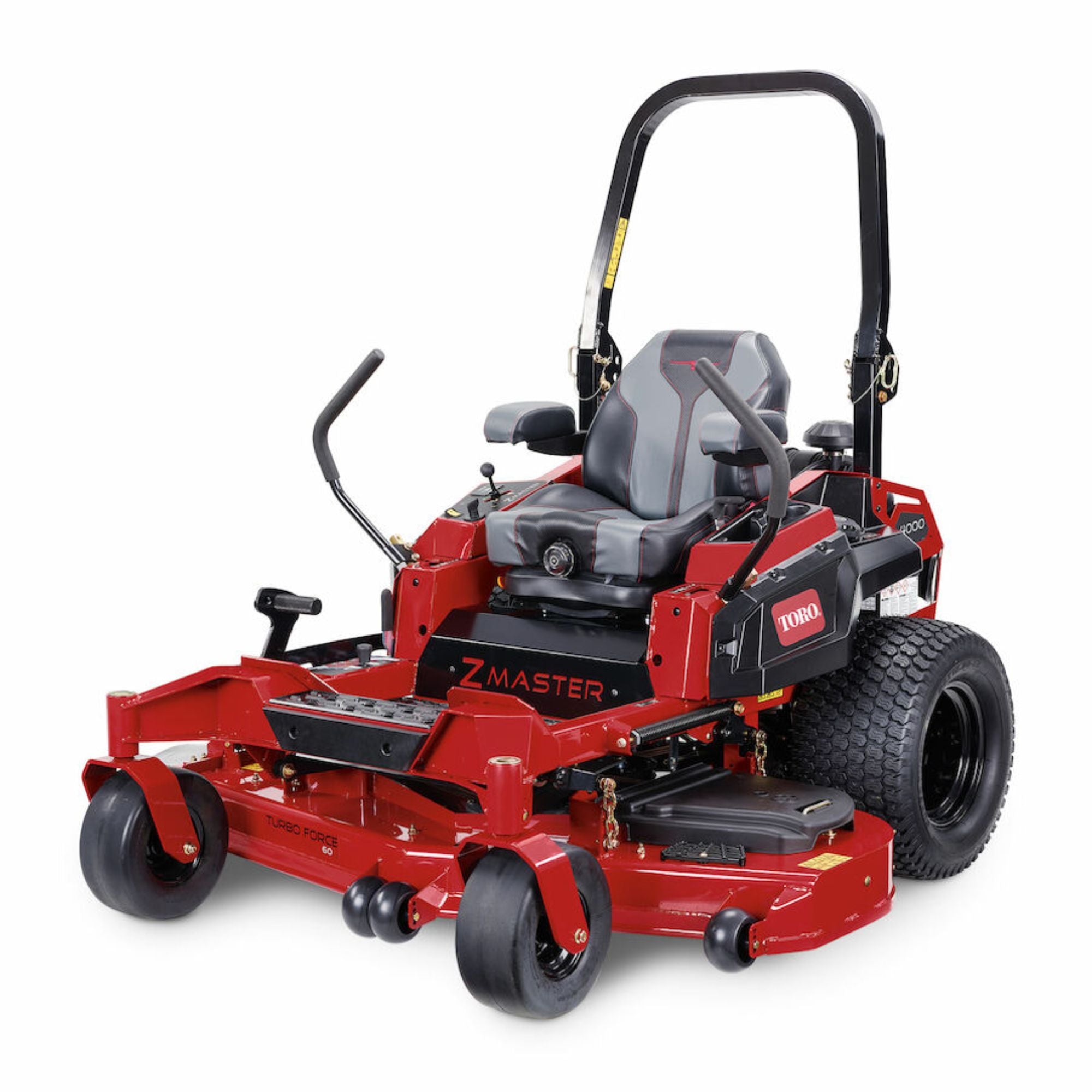

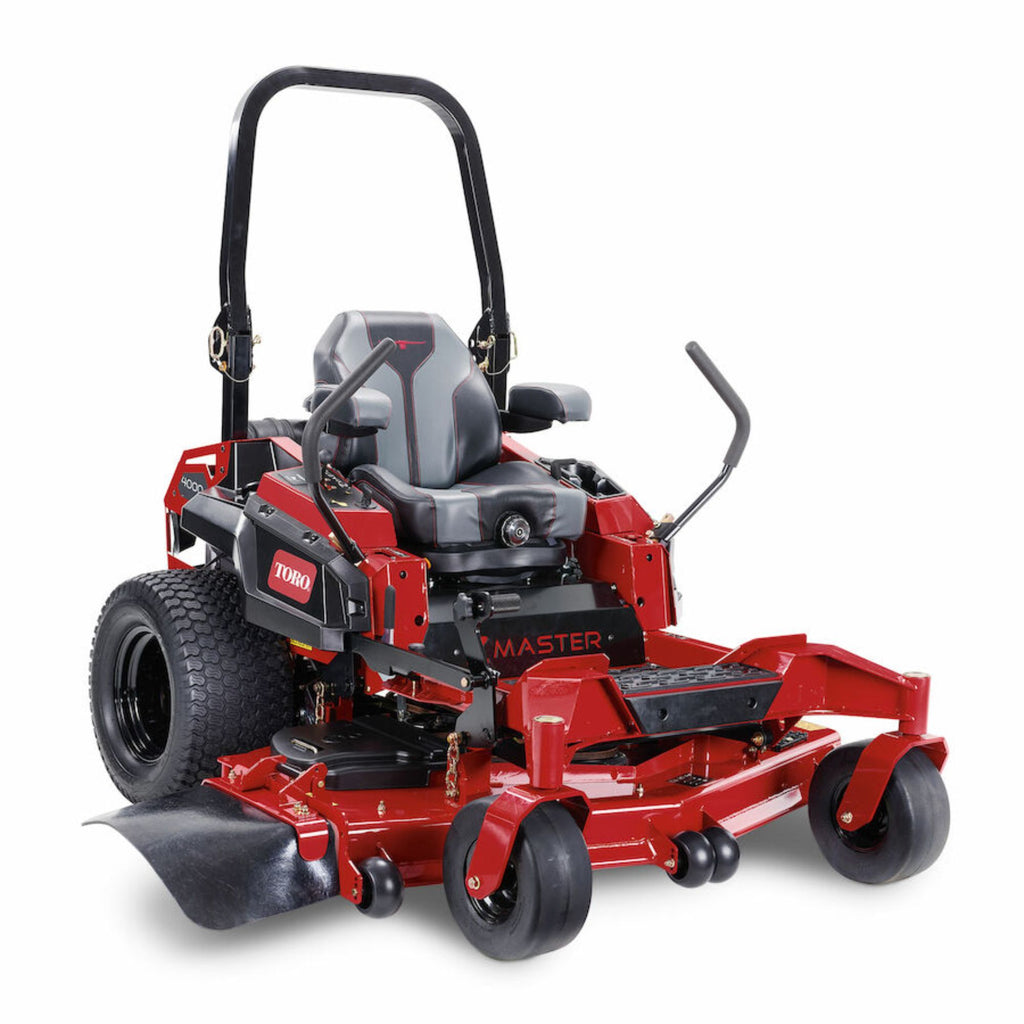

The Z-Master 4000 zero-turn mower is a force to be reckoned with. Built tough with a powerful 26.5 hp* Kohler Command Pro EFI engine, heavy-duty commercial grade hydros, flat-free semi-pneumatic caster tires, 24 in. Turf Tires, and a 60 in. 7-Gauge High-Strength Steel TURBO FORCE® cutting deck to take on any job. And with an hour meter, USB ports, phone holder, and a cup holder, you’ll have everything you need from the comfort of the deluxe suspension seat to help you power through long days.
- Go full throttle and have confidence in the precise cut from our TURBO FORCE® deck with I-beam front end paired with tubular chassis and bumper.
- Keep your phone and drink at arm's reach.
- Keep tabs on time and keep devices powered up with the hour meter and USB ports.
- Easy on and off with a step-through front end, deck step plate, and anti-slip floormat.
- Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.
Specifications
| Air Filter |
Heavy-Duty Donaldson® Canister-Style Air Cleaner |
| Blade Tip Speed |
18,500 ft/min / 5,638 m/min |
| Blades |
0.204 in. (0.5 cm) heat-treated steel |
| Box Dimensions |
91 in. x 70 in. x 52.5 in. / 231.1 cm x 177.8 cm x 133.4 cm |
| CARB Compliant |
Not CARB Compliant |
| Caster Tires |
13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Pneumatic |
| Clutch |
Electromagnetic |
| Deck Design |
60" (152.4 cm) 7-Gauge High-Strength Steel TURBO FORCE® |
| Deck Size |
60 in / 152 cm |
| Discharge Chute |
Rubber |
| Drive Tires |
Turf Tires 24 in. x 12 in. - 12 in. (61 cm x 30.5 cm - 30.5 cm) |
| Engine |
26.5* hp Kohler Command Pro EFI (747 cc) with Heavy-Duty Donaldson® Canister-Style Air Cleaner |
| Engine Brand |
Kohler |
| Engine Displacement (cc) |
747 cc |
| Engine Horsepower |
26.5 hp |
| Foot Operated Height of Cut |
Standard |
| Forward Ground/Transport Speed |
Up to 10.0 mph / 16.0 kph |
| Fuel Capacity |
10 gal. / 37.8 L / 40 Qt. |
| Fuel Type |
Gasoline |
| Height of Cut |
1.5 - 5.5 in. / 3.8 - 14.0 cm |
| Hour Meter |
Standard |
| Lighting |
Optional |
| Product Features |
Deluxe Seat, Electric Start, Foot Operated Height of Cut, Gas Powered, Hour Meter, XL Frame |
| Product Type |
Zero Turn Mowers |
| Roll-Over Protection System (ROPS) |
Folding; Standard |
| Seat |
Handcrafted Deluxe Suspension Seat with Arm Rests |
| Spindle Bearings |
Maintenance-free |
| Spindle Housing |
9 in / 2.9 cm Diameter Aluminum |
| Start Type |
Electric |
| Steering Controls |
1.4" (3.6 cm) Diameter Grips; Adjustable, Dampened |
| Transmission |
ZT-4400 Integrated Pumps and Wheel Motors |
| Weight |
1,185 lbs / 537.5 kg |
Disclaimer
*The gross horsepower of these engines was laboratory rated at 3,600 RPM by the engine manufacturer in accordance with SAE J1940 and SAE J1995. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly different.
**See your retailer for warranty details.
