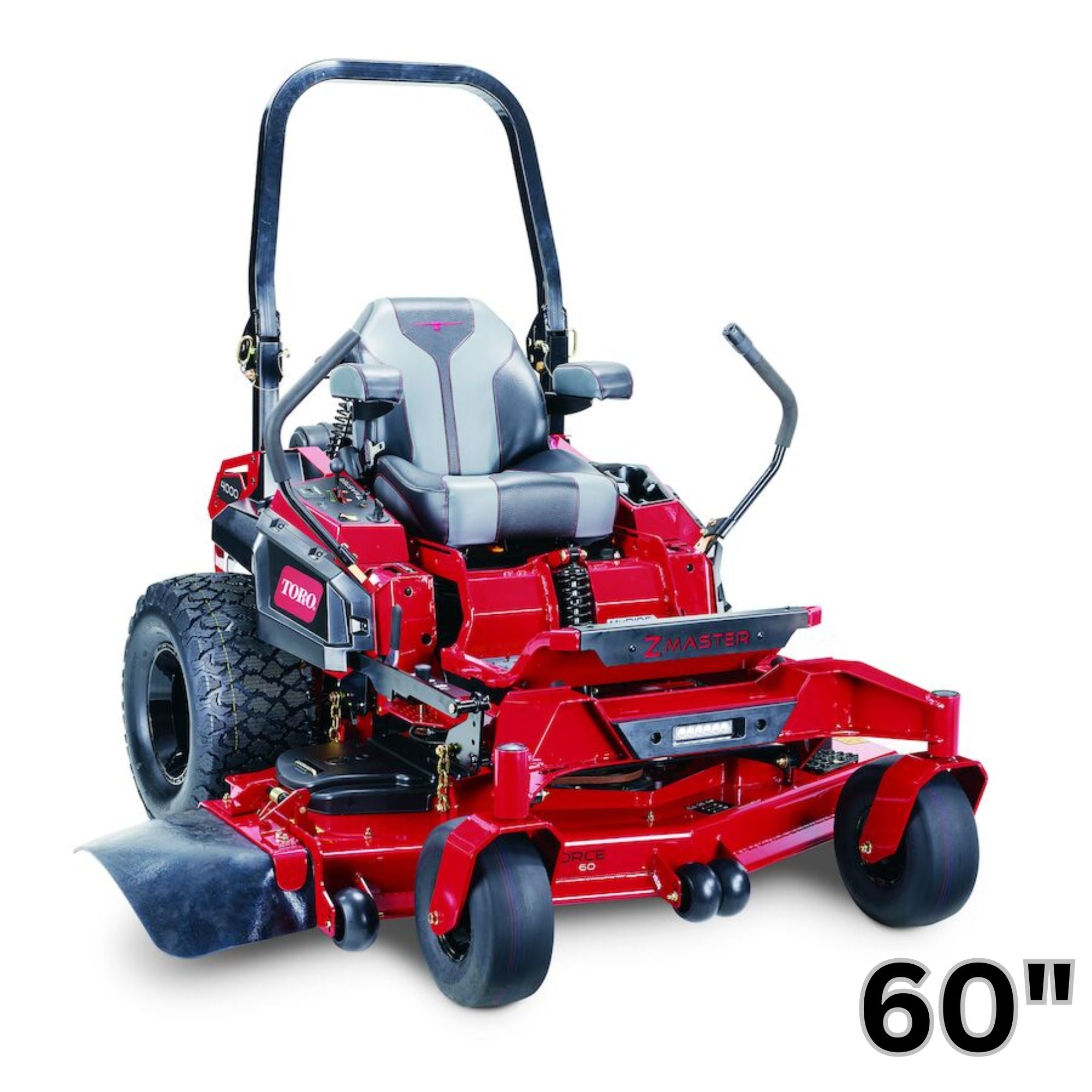

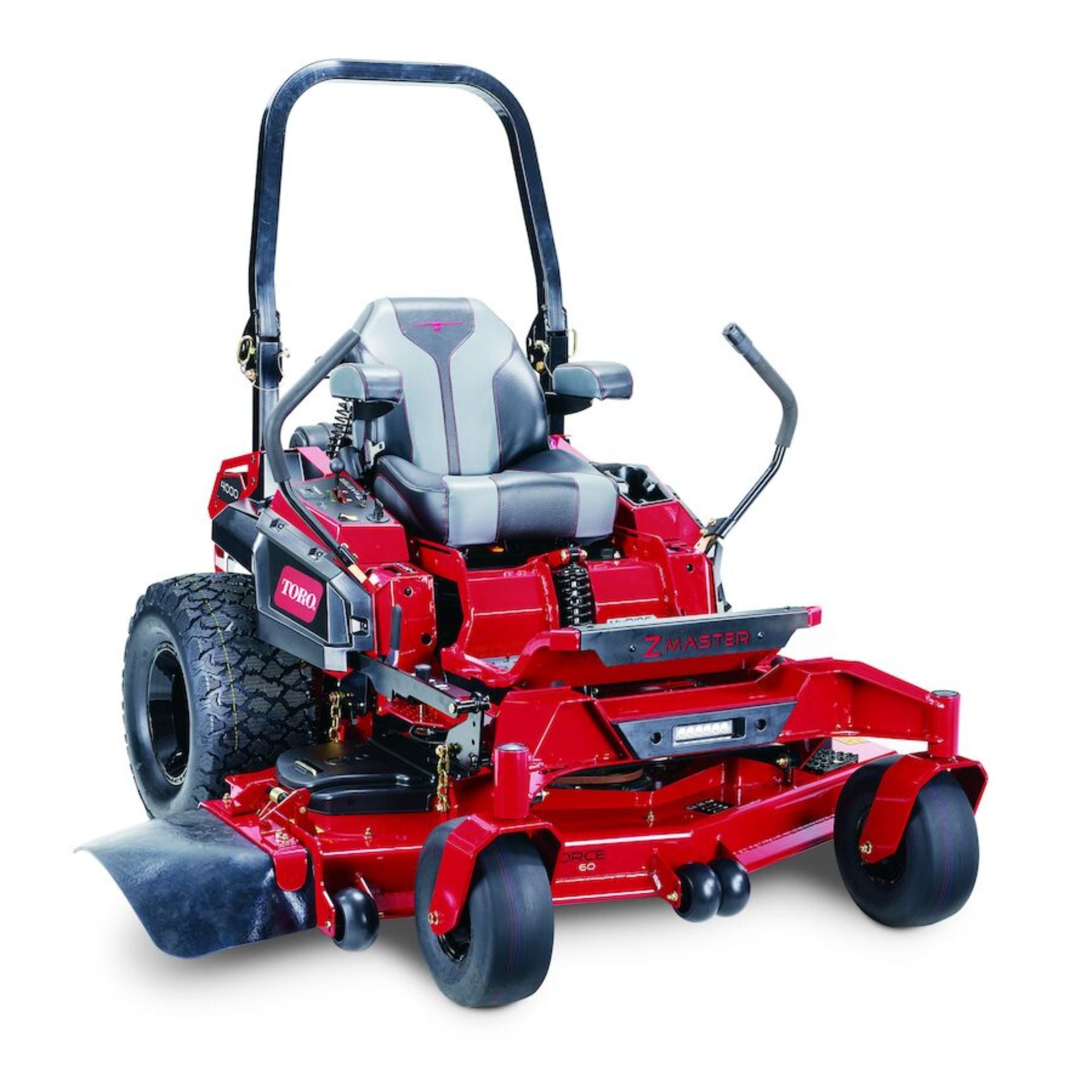

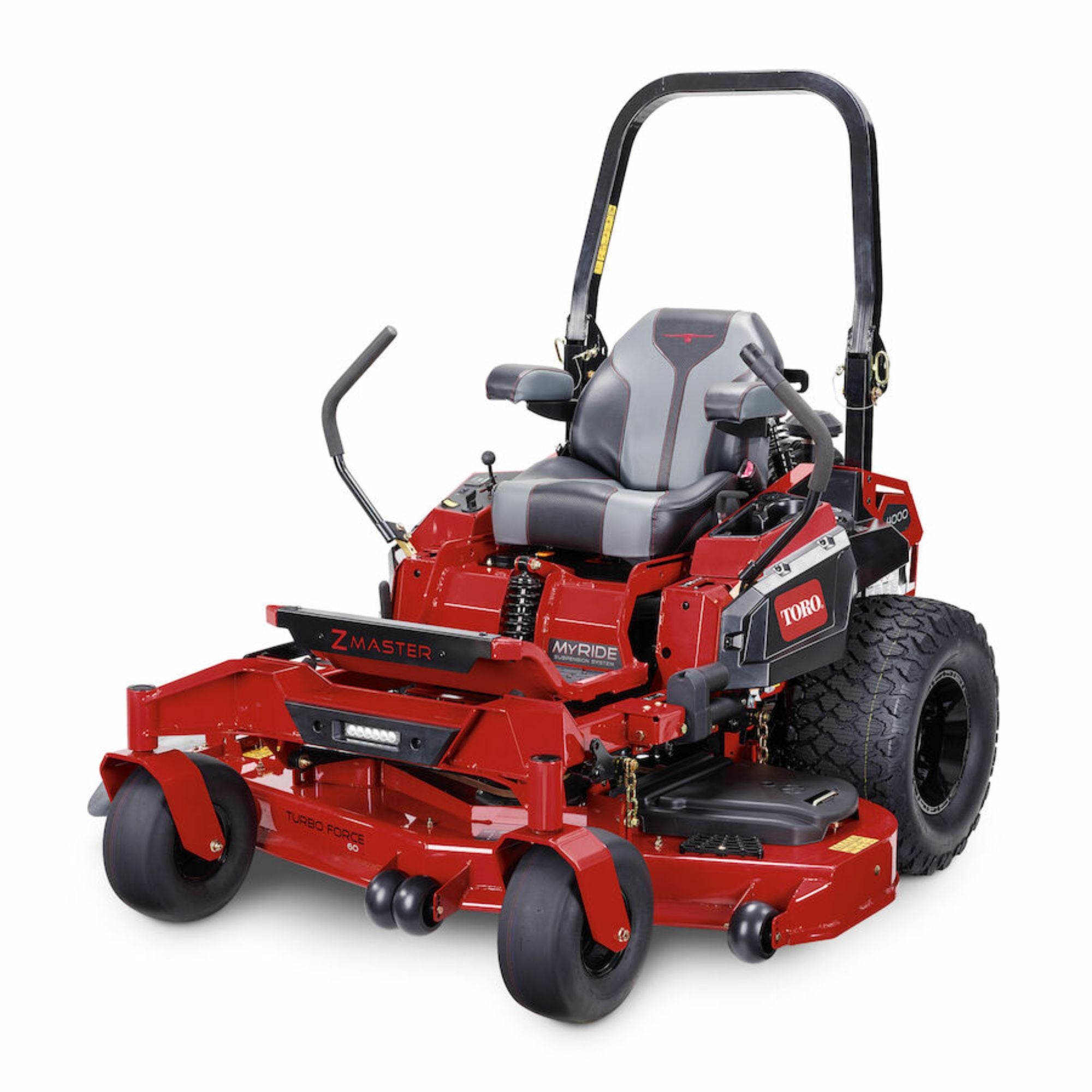

Unleash power, comfort, and confidence like never before with the 60-inch Z-Master 4000 HDX with MyRIDE® Suspension System. Dominate any job with the relentless 35 HP* Kawasaki FX1000 engine and legendary TURBO FORCE® cutting deck, reinforced with heavy-duty commercial-grade hydros, and supported by the 26-inch Voodoo Trac™ tires. Plus, with the hour meter, USB ports, phone holder, and cup holder, you’ll have everything you need to conquer the day in comfort.
- Save your body from the toughest terrain with the MyRIDE Suspension System.
- Survey the task from a higher-vantage-point with the 26" Voodoo Trac™ drive tires.
- Powerful illumination for after-hours work with LED headlights.
- Keep your phone and drink at arm's reach.
- Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.
- Keep tabs on time and keep devices powered up with the hour meter and USB ports.
Specifications
Blade Design |
0.25 in. / 0.635 cm thick heat-treated steel |
Blade Tip Speed |
18,500 ft/min / 5,638 m/min |
Box Dimensions |
91 in. x 70 in. x 52 in. / 231.1 cm x 177.8 cm x 131.1 cm |
Caster Tires |
15 in. x 6.5 in. - 6 in. (38.1 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic |
Clutch |
Electromagnetic |
Comfort Platform |
MyRIDE® Suspension System |
Deck Design |
60" (152 cm) 7-Gauge High-Strength Steel TURBO FORCE® |
Deck Size |
60 in / 152 cm |
Discharge Chute |
Rubber |
Drive Tires |
Voodoo Trac 26 in. x 12 in. - 12 in. (66 cm x 30.5 cm - 30.5 cm) |
Engine |
35 hp* Kawasaki FX1000V (999 cc) with Heavy-Duty Donaldson® Canister-Style Air Cleaner |
Engine Brand |
Kawasaki |
Engine Displacement (cc) |
999 cc |
Engine Horsepower |
35 hp |
Foot Operated Height of Cut |
Standard |
Forward Ground/Transport Speed |
Up to 12.0 mph / 19.3 kph |
Fuel Capacity |
10 gal. / 37.8 L / 40 Qt. |
Fuel Type |
Gasoline |
Height of Cut |
1.5 - 5.5 in. / 3.8 - 14.0 cm in 0.25 in (0.6 cm) increments |
Hour Meter |
Standard |
Product Type |
Zero Turn Mowers |
Roll-Over Protection (ROPS) |
Folding; Standard |
Seat |
Deluxe Seat with Armrests |
Spindle Bearings |
Maintenance-free |
Spindle Housing |
9 in / 22.9 cm Diameter Cast Aluminum |
Start Type |
Electric |
Steering Controls |
1.4" (3.6 cm) Diameter Grips; Adjustable, Dampened |
Transmission |
ZT-4400 Integrated Pumps and Wheel Motors |
Weight |
1,317 lbs / 597.4 kg |
Disclaimer
*The gross horsepower of these engines was laboratory rated at 3,600 RPM by the engine manufacturer in accordance with SAE J1940 and SAE J1995. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly different.
