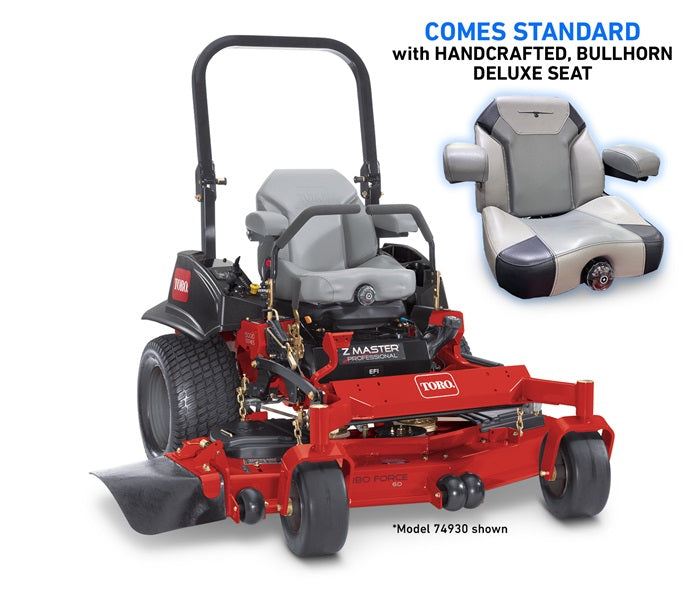

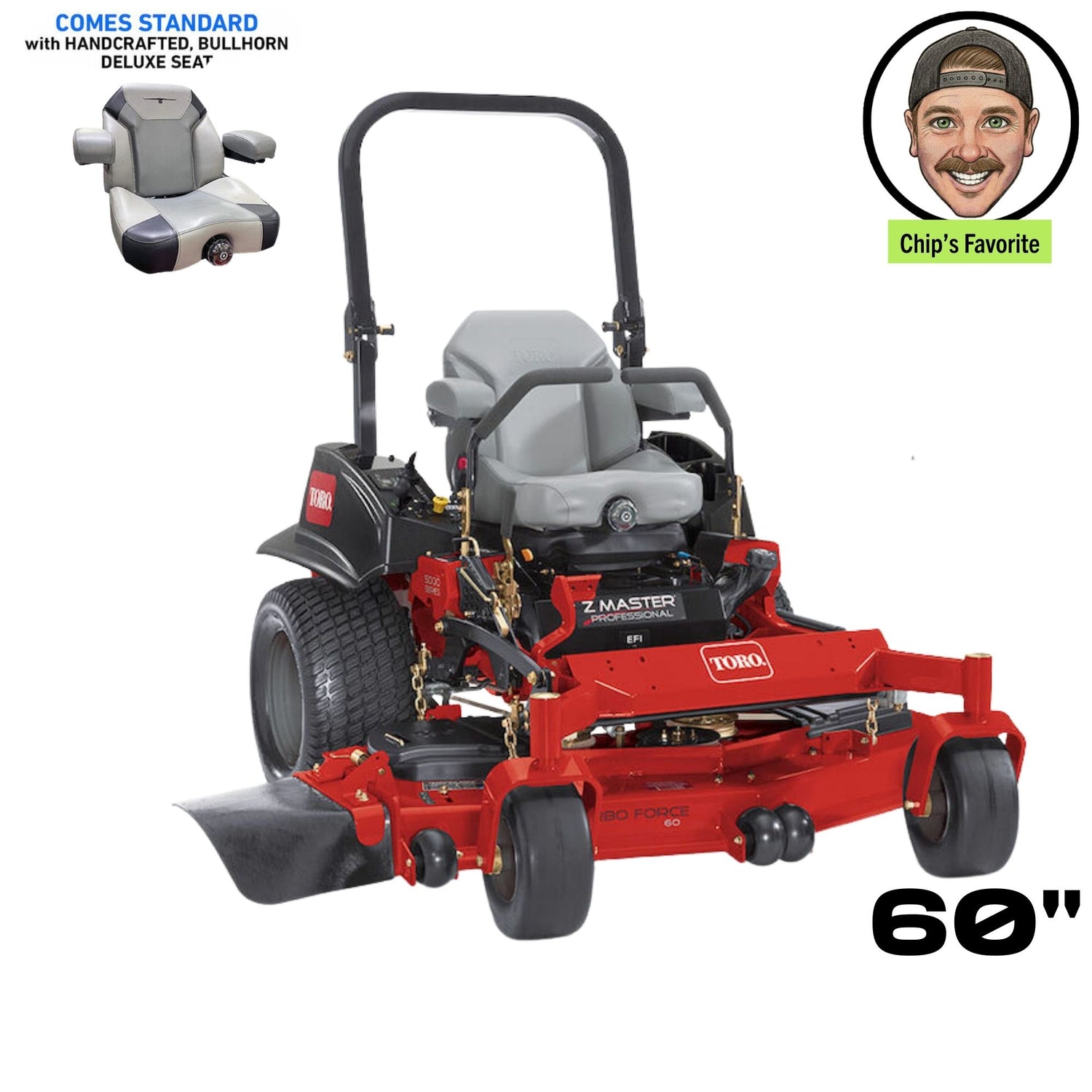

Toro Z-Master 5000 | 60" Deck | 25hp Kohler | Zero Turn Mower | 72930

Name: Toro Z-Master 5000 | 60" Deck | 25hp Kohler | Zero Turn Mower | 72930
Brand: Toro
SKU: 72930
Price: 16899.00 USD
Availability: OutOfStock

$16,899⁰⁰

Taxes and shipping calculated at checkout.

WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov

Z Master® 5000 Series - 25 hp (18.4kW) Kohler® Command Pro EFI 747cc Engine with 60 in. (152 cm) TURBO FORCE® deck.

Deluxe suspension seat features thick cushions, large bolsters and 3-D isolator mounts that absorb bumps and vibrations to reduce operator fatigue, fully adjustable to match operator comfort
Our TURBO FORCE deck features heat-treated steel blades and our patented adjustable discharge chute, nothing cuts as fast or as well
Unitized pump and wheel motor uses proven commercial hydraulic components while eliminating hoses and other potential leak points
Horizon360^® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications

Adjustable Discharge Baffle	Standard, Tools-Free
Air Filter	Heavy-Duty Canister Air Cleaner
Anti Scalp Wheels	4 Standard, 1 Optional
Armrests	Standard
Blade Tip Speed	18,500 ft/min / 5,638 m/min
Blades	0.204 in. (0.5 cm) heat-treated steel
Box Dimensions	91 in. x 70.5 in. x 52.5 in. / 213.1 cm x 179.1 cm x 133.4 cm
CARB Compliant	Not CARB Compliant
Carrier Frame	3 in. x 1.5 in. x 10 gauge (7.6 cm x 3.8 cm x 10 gauge)
Caster Tires	13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic
Comfort Platform	Deluxe Suspension with 3-D Isolation Mounts
Deck Design	80-Grade 7-gauge 60" (152 cm) TURBO FORCE® w/bull-nose bumper
Deck Material	9 Gauge Steel
Deck Size	60 in / 152 cm
Discharge Chute	Rubber
Drive System	Hydraulic Unitized Pumps and Wheel Motors
Drive Tires	24 in. x 12 in. - 12 in. (61 cm x 30.5 cm - 30.5 cm)
Engine	25 hp* (18.4kW) Kohler® Command Pro EFI 747 cc
Engine Brand	Kohler
Engine Displacement (cc)	747 cc
Engine Horsepower	25 hp
Forward Ground/Transport Speed	Up to 10.0 mph / 16.0 kph
Front Bumper	Reinforced Bull-Nose
Fuel Capacity	12 gal. / 45.4 L / 48 Qt.
Fuel Type	Gasoline
Height of Cut	1.0 - 5.5 in. / 2.5 - 14.0 cm
Hour Meter	Standard
Hydraulic Fluid	Premium synthetic
Product Type	Zero Turn Mowers
Product Use	Commercial
Roll-Over Protection System (ROPS)	Folding; Standard
Seat	Handcrafted Deluxe Suspension Seat with Arm Rests Featuring Bullhorn Accent
Spindle Bearings	Maintenance-free
Spindle Housing	9 in / 22.9 cm Diameter Cast Aluminum
Start Type	Electric
Steering Controls	1-5/8" (4.1 cm) Diameter Grips; Adjustable, Dampened
Weight	1,240 lbs / 562.5 kg

Disclaimer

*The gross horsepower of this engine was laboratory rated at 3600 rpm by the engine manufacturer in accordance with SAE J1940 or SAE J2723. As configured to meet safety, emission, and operating requirements, the actual engine horsepower on this class of mower will be significantly lower.

Maintenance Service Interval	Maintenance Procedure
After the first 100 hours	Check the wheel lug-nut torque. Check the wheel-hub slotted-nut torque. Adjust the parking brake.
After the first 250 hours	Change the hydraulic filters and hydraulic fluid.
Before each use or daily	Check the safety-interlock system. Check the engine-oil level. Check the seat belt. Check the roll bar knobs. Clean the engine screen and the oil cooler. Check and clean the hydraulic-unit shrouds. Inspect the blades. Clean the suspension system.
After each use	Clean the mower deck.
Every 50 hours	Check the spark arrester (if equipped). Check the tire pressure Inspect the belts for cracks and wear. Check the hydraulic-fluid level.
Every 100 hours	Lubricate the mower deck-lift pivots. Change the engine oil(more often in dirty or dusty conditions). Check and clean engine-cooling fins and shrouds.
Every 150 hours	Inspect the primary filter(more often in dirty or dusty conditions).
Every 200 hours	Change the engine-oil filter(more often in dirty or dusty conditions). Check the spark plug(s). Replace the fuel filter (more often in dirty or dusty conditions).
Every 250 hours	After the initial change—change the hydraulic-system filters and fluid when using Mobil 1 15W50 fluid.(Change it more often under dirty or dusty conditions)
Every 300 hours	Replace the primary air filter(more often in dirty or dusty conditions). Check the inner air filter(more often in dirty or dusty conditions).
Every 400 hours	Grease the caster pivots (more often in dirty or dusty conditions).
Every 500 hours	Replace the spark plug(s). Check the wheel lug-nut torque. Check the wheel-hub slotted-nut torque. Adjust the caster-pivot bearing. Adjust the parking brake. After the initial change—change the hydraulic-system filters and fluid when using Toro® HYPR-OIL™ 500 fluid.(Change it more often under dirty or dusty conditions)
Every 600 hours	Replace the inner air filter.
Monthly	Check the battery charge.
Yearly	Grease the pump-belt-idler arm. Repack the caster-wheel bearings(more often in dirty or dusty conditions). Greasing the caster-wheel hubs.
Yearly or before storage	Paint chipped surfaces.
