Toro | SKU: 72924

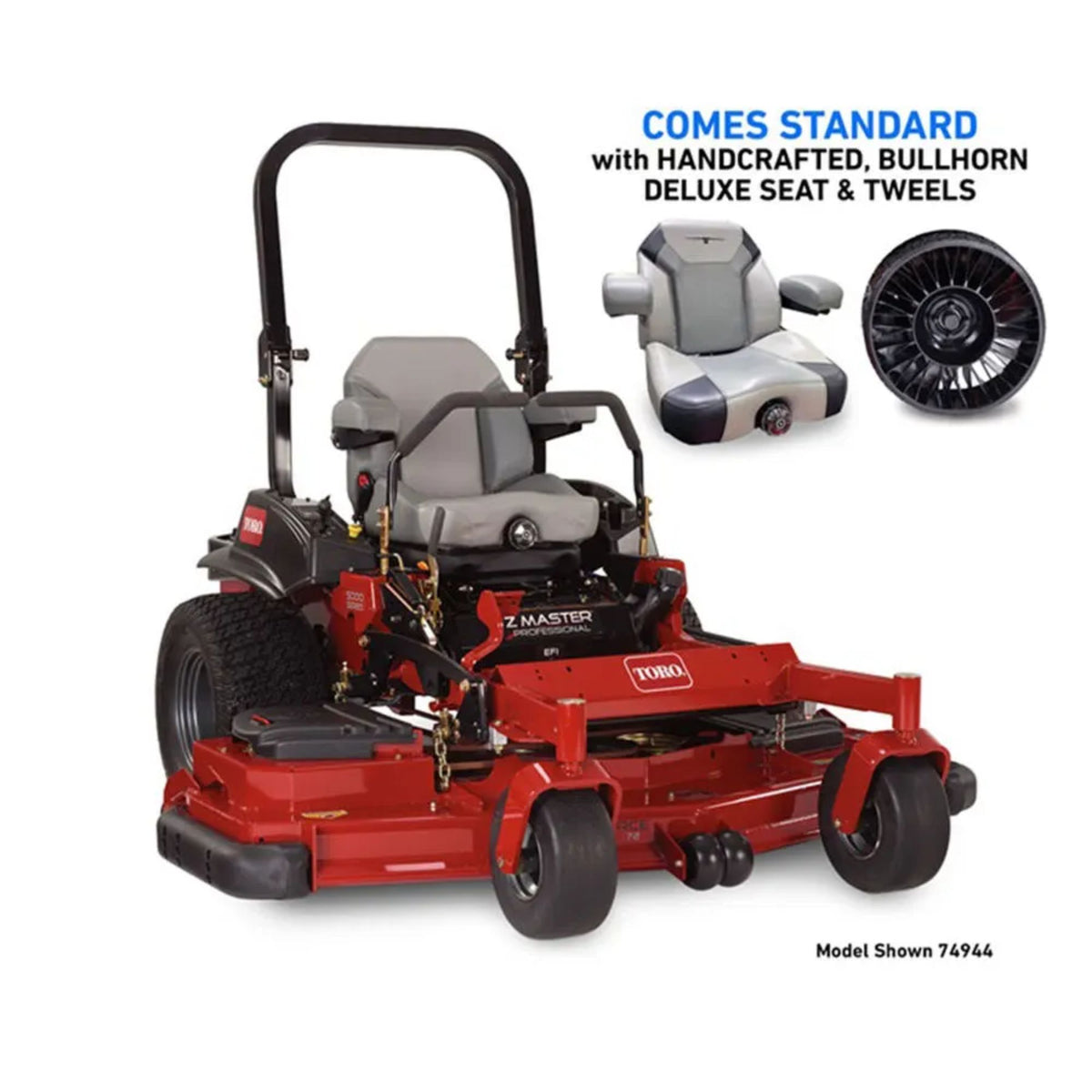

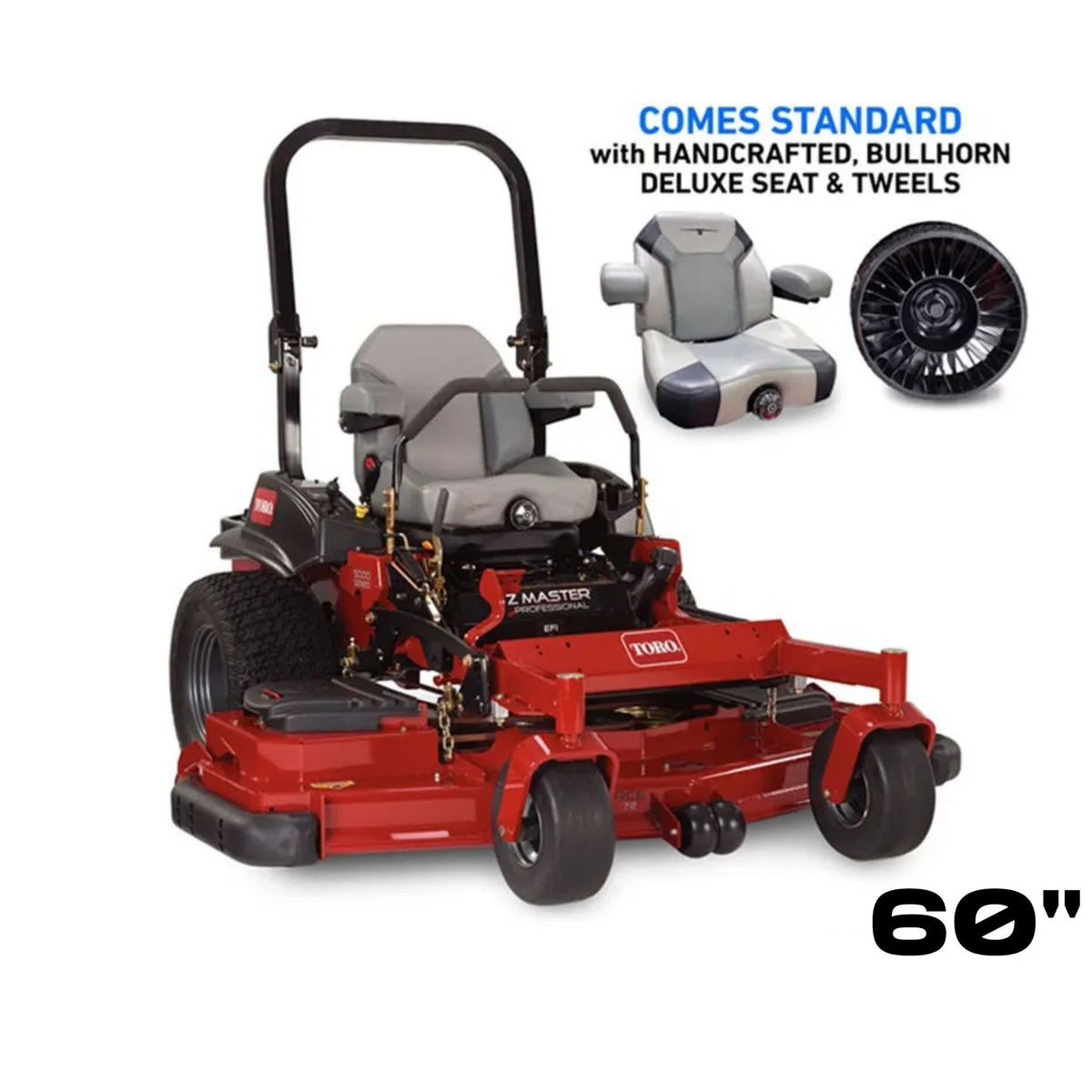

Toro Z Master 5000 | 60" Deck | 26.5 Kohler EFI | Rear Discharge | Zero Turn Mower | 72924

$18,699⁰⁰

Taxes and shipping calculated at checkout.

WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov

Z Master Professional 5000 Series mowers offer rear discharge decks for increased productivity in taller grass. These EFI models also use up to 25% less fuel than equivalent non-EFI mowers. The rear discharge design allows operators to trim on either side of the deck — no need to change direction to avoid discharging debris on roadways, sidewalks or flowerbeds. Clippings are dropped within the path of the mower, saving time and cleanup.

Our TURBO FORCE deck features heat-treated steel blades and our patented adjustable discharge chute, nothing cuts as fast or as well
Unitized pump and wheel motor uses proven commercial hydraulic components while eliminating hoses and other potential leak points
Deluxe suspension seat features thick cushions, large bolsters, fully adjustable to match operator comfort
Tweel Turf Tires - No air pressure to maintain, no flat tires, no compromises. Extra long wear life two to three times that of a pneumatic tire at equal tread depth.
Horizon360^® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications

Adjustable Discharge Baffle	Standard
Air Filter	Heavy-Duty Canister Air Cleaner
Anti Scalp Wheels	2 Side Bumpers, 4 Rollers
Armrests	Standard
Blade Tip Speed	18,500 ft/min / 5,638 m/min
Blades	0.204 in. (0.5 cm) heat-treated steel
Box Dimensions	91 in. x 80 in. x 52.5 in. / 231.1 cm x 203.2 cm x 133.4 cm
CARB Compliant	CARB Compliant
Carrier Frame	3 in. x 1.5 in. x 10 gauge (7.6 cm x 3.8 cm x 10 gauge)
Caster Tires	13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic
Comfort Platform	Deluxe Suspension with 3-D Isolation Mounts
Cup Holder	Standard
Deck Design	80-Grade 7-gauge 72" (182.9 cm) TURBO FORCE® Rear Discharge w/ bull-nose bumper
Deck Size	60 in / 152 cm
Discharge Chute	Rubber
Drive System	Unitized Pumps 12cc and Wheel Motors 14.6 cir
Drive Tires	Airless radial 24 in. (60.9 cm) Michelin x Tweel Turf Tires
Engine	26.5 hp* (20kW) Kohler® Command Pro EFI 747 cc
Engine Brand	Kohler
Engine Displacement (cc)	747 cc
Engine Horsepower	26.5 hp
Forward Ground/Transport Speed	Up to 10.0 mph / 16.0 kph
Front Bumper	Reinforced Bull-Nose
Fuel Capacity	12 gal. / 45.4 L / 48 Qt.
Fuel Type	Gasoline
Height of Cut	1.0 - 5.5 in. / 2.5 - 14.0 cm
Hour Meter	Standard
Hydraulic Fluid	Premium synthetic
Number of Blades	3
Product Features	Electric Start, Gas Powered, Hour Meter
Product Type	Zero Turn Mowers
Product Use	Commercial
Roll-Over Protection System (ROPS)	Folding; Standard
Seat	Handcrafted Deluxe Suspension Seat with Arm Rests Featuring Bullhorn Accent
Spindle Bearings	Maintenance-free
Spindle Housing	9 in / 22.9 cm Diameter Cast Aluminum
Start Type	Electric
Steering Controls	1-5/8" (4.1 cm) Diameter Grips; Adjustable, Dampened
Weight	1,315 lbs / 596.5 kg

Maintenance Service Interval	Maintenance Procedure
After the first 100 hours	Check the wheel lug-nut torque. Check the wheel-hub slotted-nut torque. Adjust the parking brake.
After the first 250 hours	Change the hydraulic filters and hydraulic fluid.
Before each use or daily	Check the safety-interlock system. Check the engine-oil level. Check the seat belt. Check the roll bar knobs. Clean the engine screen and the oil cooler. Check and clean the hydraulic-unit shrouds. Inspect the blades. Clean the suspension system.
After each use	Clean the mower deck.
Every 50 hours	Check the spark arrester (if equipped). Check the tire pressure Inspect the belts for cracks and wear. Check the hydraulic-fluid level.
Every 100 hours	Lubricate the mower deck-lift pivots. Change the engine oil(more often in dirty or dusty conditions). Check and clean engine-cooling fins and shrouds.
Every 150 hours	Inspect the primary filter(more often in dirty or dusty conditions).
Every 200 hours	Change the engine-oil filter(more often in dirty or dusty conditions). Check the spark plug(s). Replace the fuel filter (more often in dirty or dusty conditions).
Every 250 hours	After the initial change—change the hydraulic-system filters and fluid when using Mobil 1 15W50 fluid.(Change it more often under dirty or dusty conditions)
Every 300 hours	Replace the primary air filter(more often in dirty or dusty conditions). Check the inner air filter(more often in dirty or dusty conditions).
Every 400 hours	Grease the caster pivots (more often in dirty or dusty conditions).
Every 500 hours	Replace the spark plug(s). Check the wheel lug-nut torque. Check the wheel-hub slotted-nut torque. Adjust the caster-pivot bearing. Adjust the parking brake. After the initial change—change the hydraulic-system filters and fluid when using Toro® HYPR-OIL™ 500 fluid.(Change it more often under dirty or dusty conditions)
Every 600 hours	Replace the inner air filter.
Monthly	Check the battery charge.
Yearly	Grease the pump-belt-idler arm. Repack the caster-wheel bearings(more often in dirty or dusty conditions). Greasing the caster-wheel hubs.
Yearly or before storage	Paint chipped surfaces. Check all maintenance procedures listed above before storage.

Disclaimer

*The gross horsepower of this engine was laboratory rated by the engine manufacturer in accordance with SAE J1940. As configured to meet safety, emission, and operating requirements, the actual engine horsepower on this class of mower will be significantly lower.
