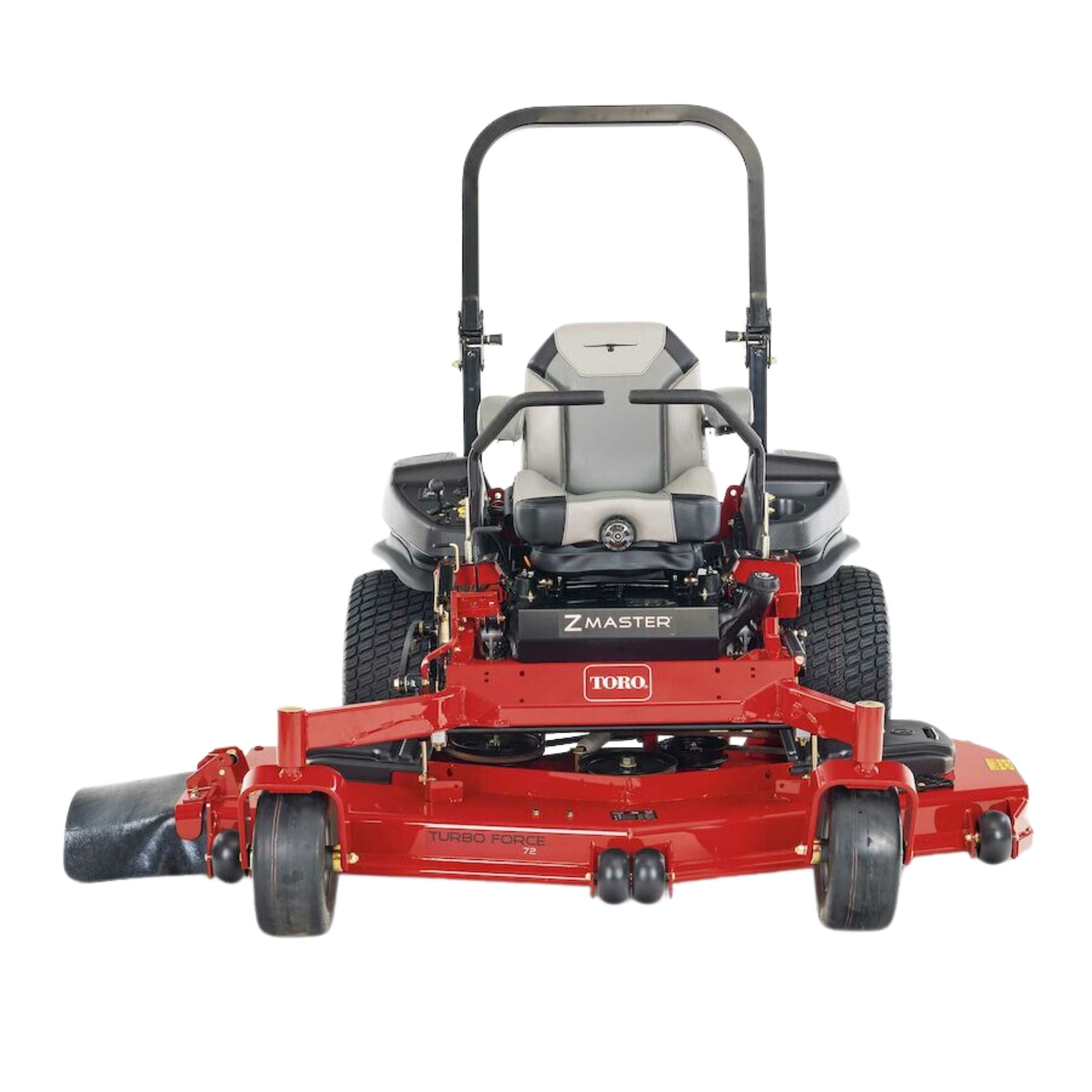

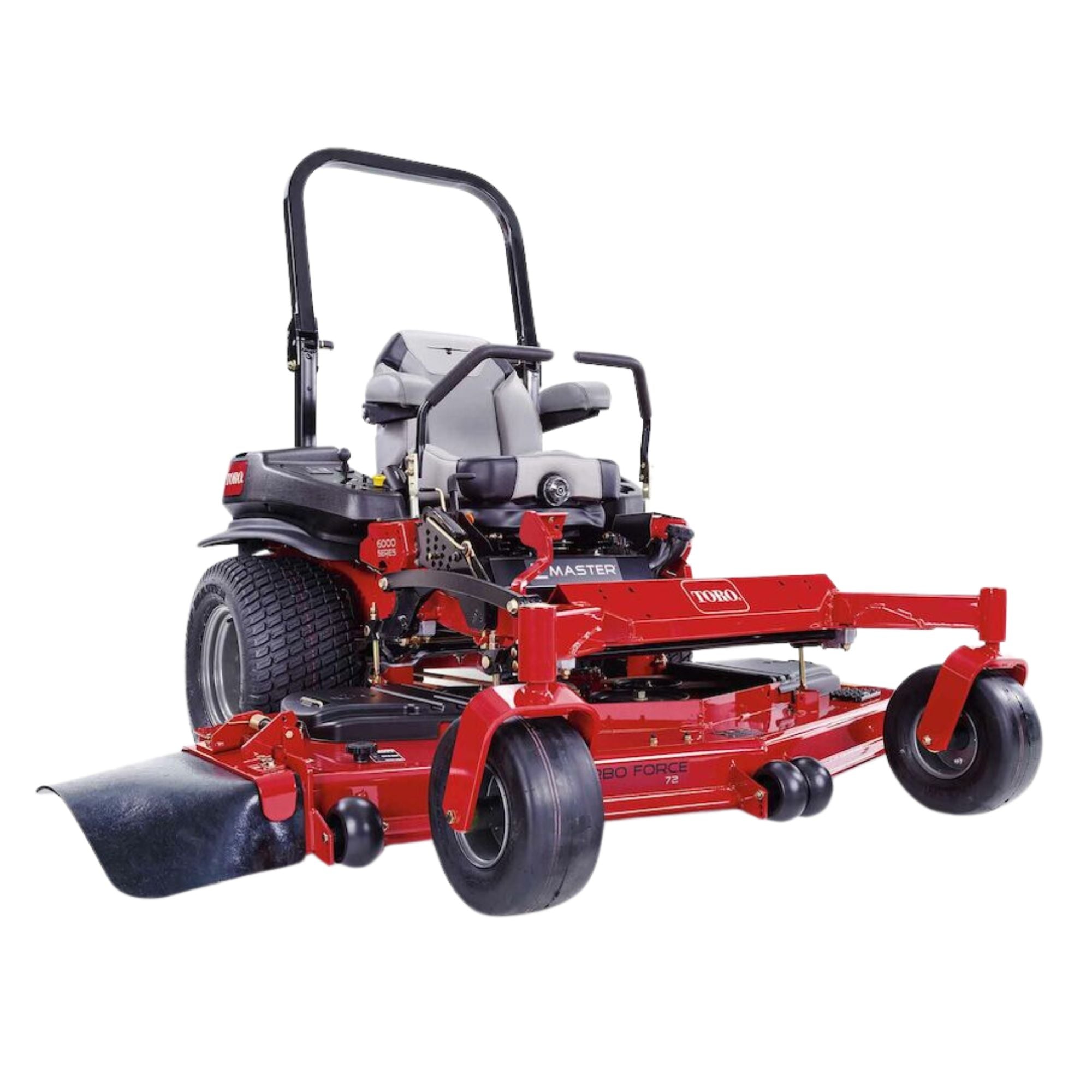

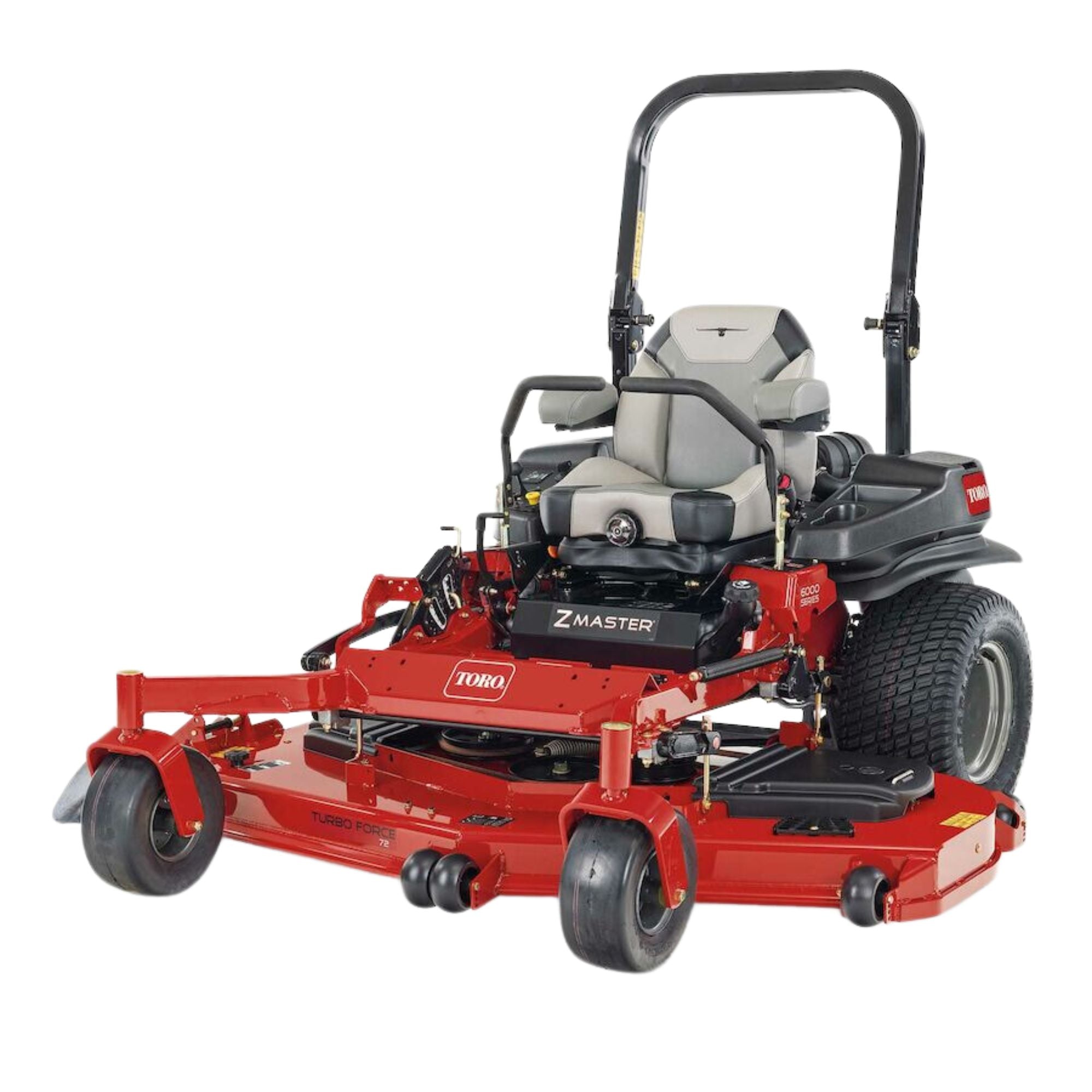

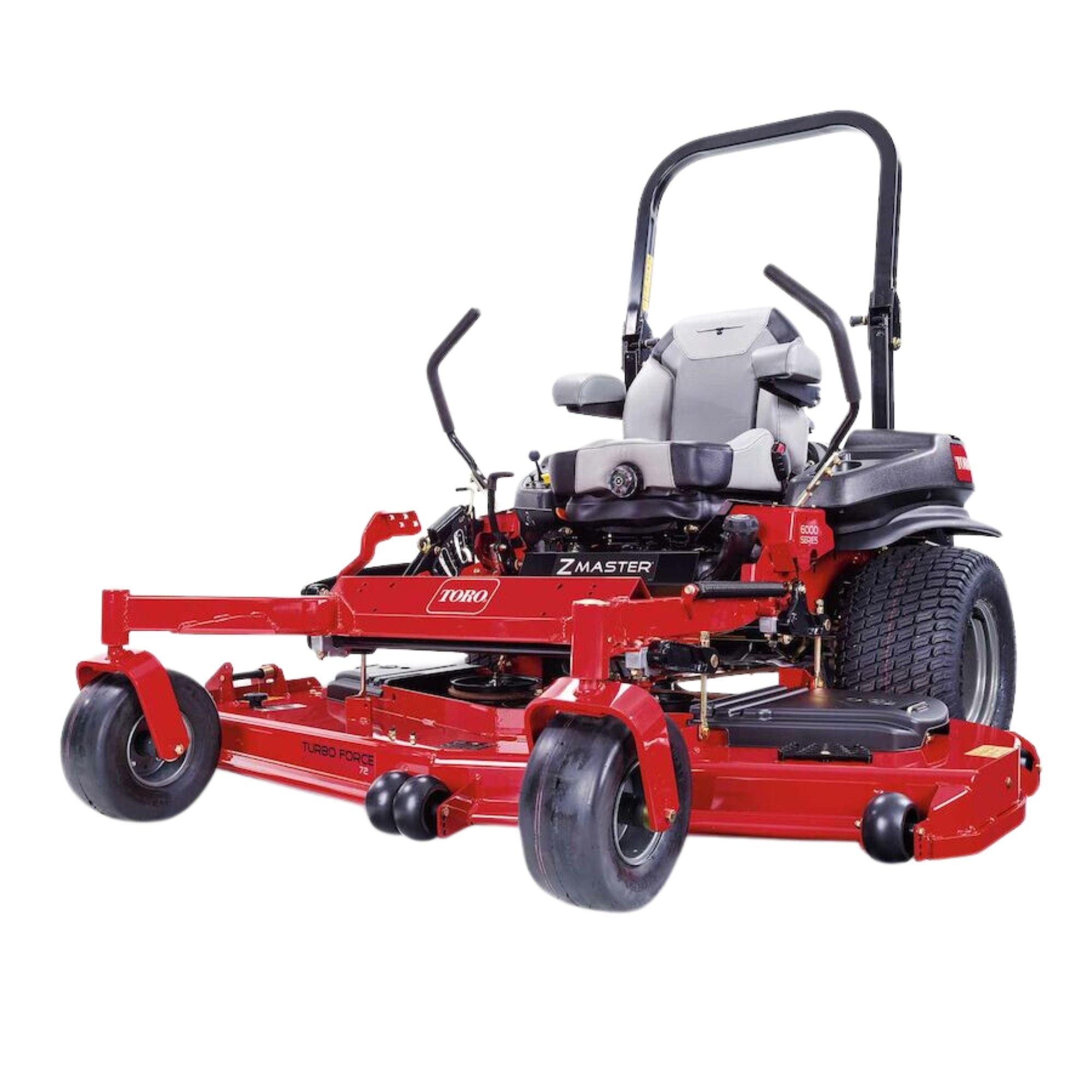

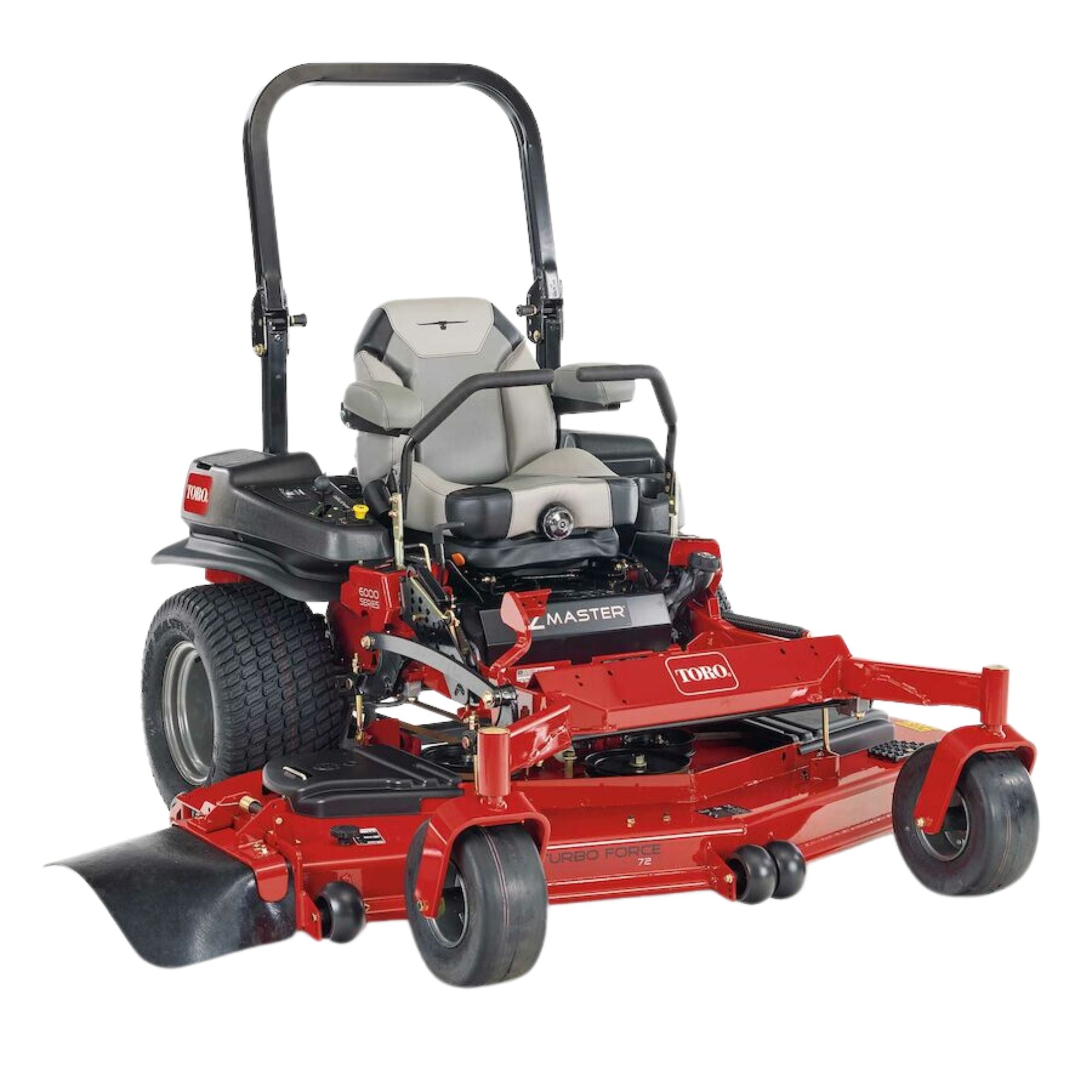

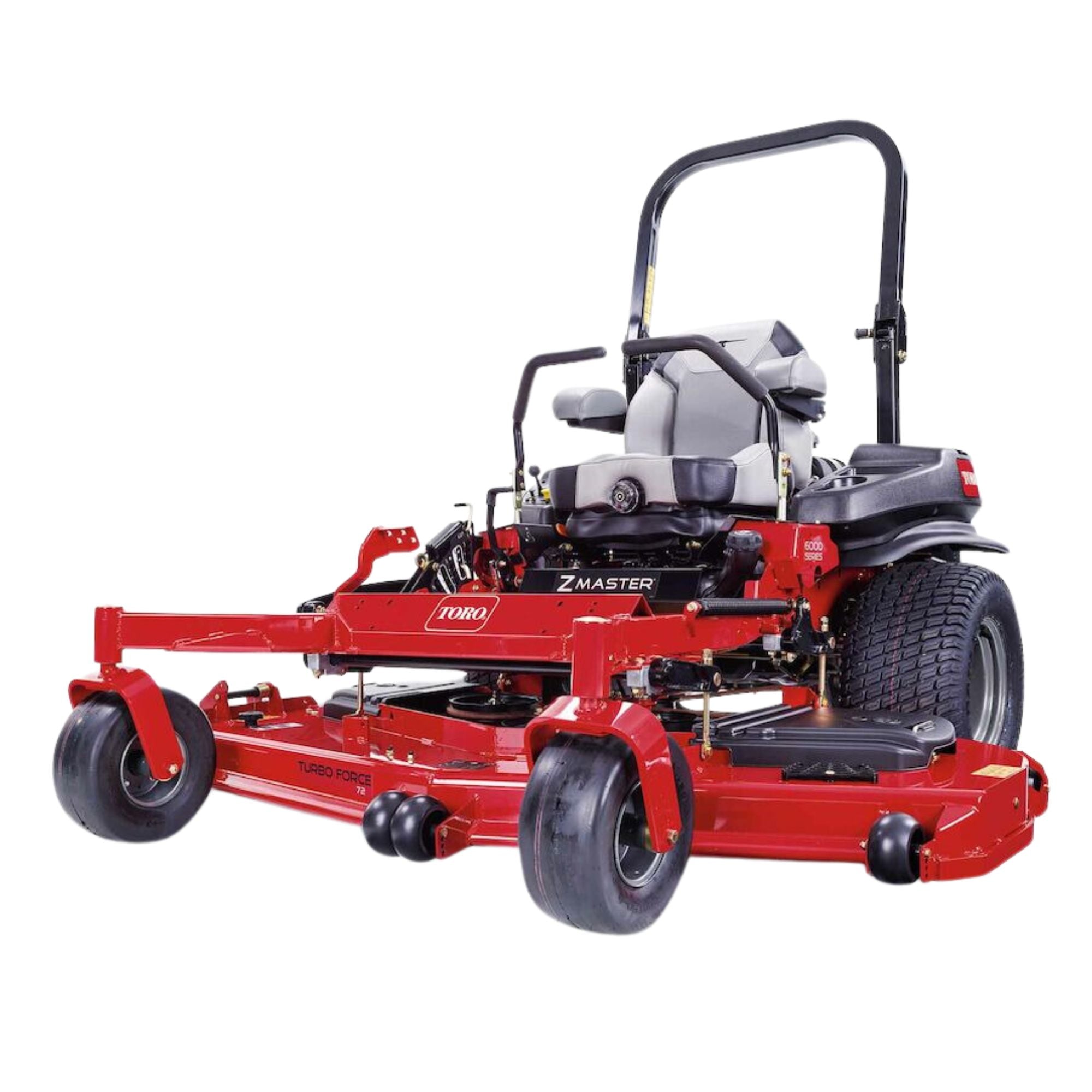

Z Master® 6000 Series EFI models feature Horizon Technology, an onboard intelligence platform that improves fuel efficiency and productivity. This feature allows communication between key systems on the machine to enhance performance in a wide range of mowing conditions. This Z Master® 6000 Series mower has a 38 hp (25kW) Kohler® Command Pro EFI 999cc w/Horizon™ Technology Engine with 72 in. (183 cm) TURBO FORCE® deck.
- Our TURBO FORCE deck features heat-treated steel blades and our patented adjustable discharge chute, nothing cuts as fast or as well
- Deluxe suspension seat features thick cushions, large bolsters and 3-D isolator mounts that absorb bumps and vibrations to reduce operator fatigue, fully adjustable to match operator comfort
- Unitized pump and wheel motor uses proven commercial hydraulic components while eliminating hoses and other potential leak points
- Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.
Specifications
Adjustable Discharge Baffle | Standard, Tools-Free |
---|---|
Air Filter | Heavy-Duty Canister Air Cleaner |
Armrests | Standard |
Blade Tip Speed | 18,500 ft/min / 5,638 m/min |
Blades | 0.204 in. (0.5 cm) heat-treated steel |
Box Dimensions | 91.5 in. x 80.5 in. x 52.5 in. / 232.4 cm x 204.5 cm x 133.4 cm |
CARB Compliant | Not CARB Compliant |
Carrier Frame | 3 in. x 1.5 in. x 10 gauge (7.6 cm x 3.8 cm x 10 gauge) |
Caster Tires | 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic |
Clutch | Electromagnetic |
Comfort Platform | Deluxe Suspension with 3-D Isolation Mounts |
Deck Design | 80-Grade 7-Gauge 72" (183 cm) TURBO FORCE® w/bull-nose bumper |
Deck Material | 7 Gauge Steel |
Deck Size | 72 in / 183 cm |
Discharge Chute | Rubber |
Drive System | Unitized Pumps 16cc and Wheel Motors 17.1 cir |
Drive Tires | 24 in. x 12 in. - 12 in. (61 cm x 30.5 cm - 30.5 cm) |
Engine | 34 hp* (25kW) Kohler® Command Pro EFI 999 cc w/Horizon™ Technology |
Engine Brand | Kohler |
Engine Displacement (cc) | 999 cc |
Engine Horsepower | 34 hp |
Forward Ground/Transport Speed | Up to 11.5 mph / 18.5 kph |
Front Bumper | Reinforced Bull-Nose |
Fuel Capacity | 12 gal. / 45.4 L / 48 Qt. |
Fuel Type | Gasoline |
Height of Cut | 1.0 - 5.5 in. / 2.5 - 14.0 cm |
Hour Meter | Horizon™ Technology |
Hydraulic Fluid | Premium synthetic |
Product Type | Zero Turn Mowers |
Roll-Over Protection (ROPS) | Folding; Standard |
Seat | Handcrafted Deluxe Suspension Seat with Arm Rests Featuring Bullhorn Accent |
Spindle Bearings | Maintenance-free |
Spindle Housing | 9 in / 22.9 cm Diameter Cast Aluminum |
Start Type | Electric |
Steering Controls | 1-5/8" (4.1 cm) Diameter Grips; Adjustable, Dampened |
Steering Dampeners | Standard Dampers |
Weight | 1,195 lbs / 542 kg |
Disclaimer
*The gross horsepower of this engine was laboratory rated at 3600 rpm by the engine manufacturer in accordance with SAE J1940 and SAE J2723. As configured to meet safety, emission, and operating requirements, the actual engine horsepower on this class of mower will be significantly lower.
