Toro | SKU: 74312

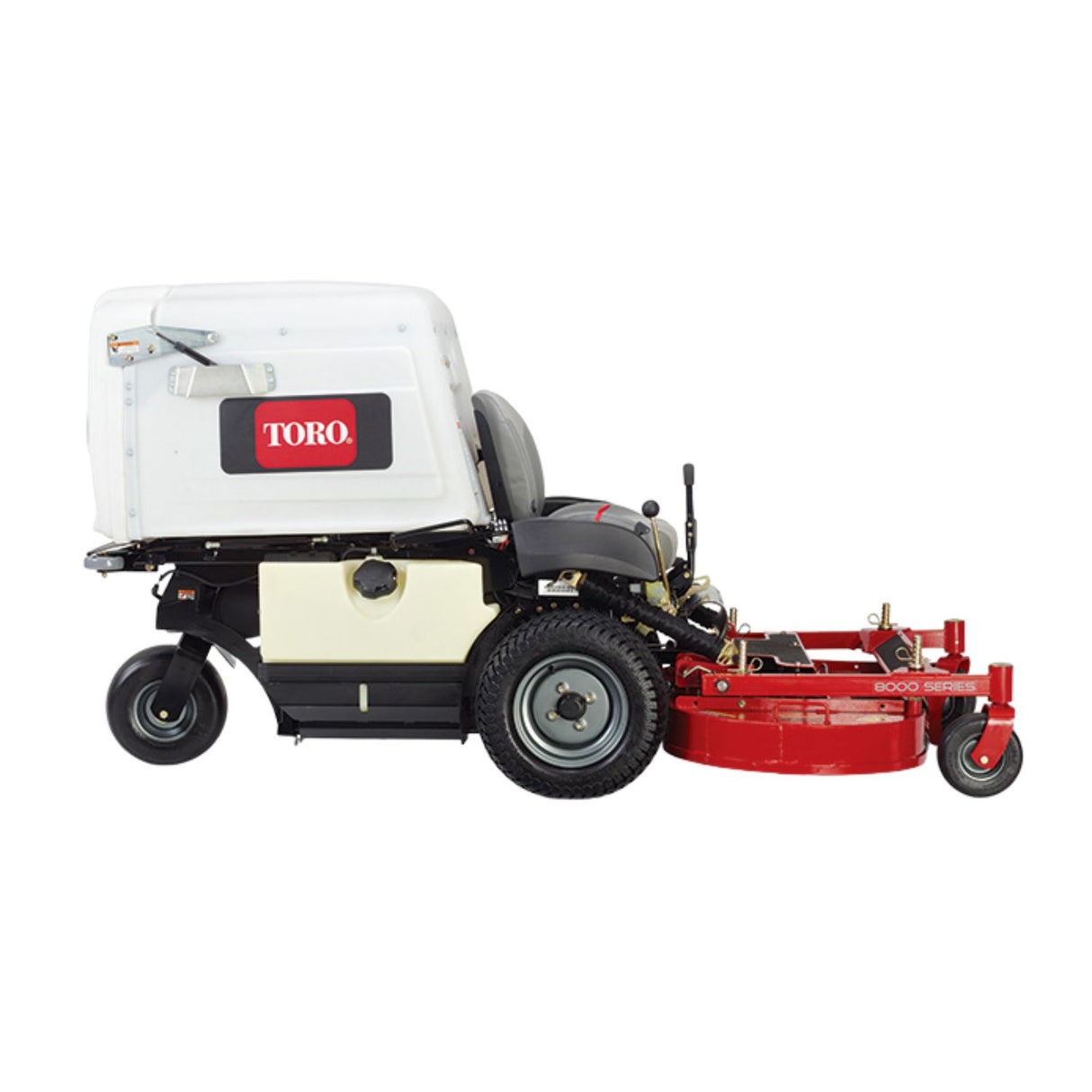

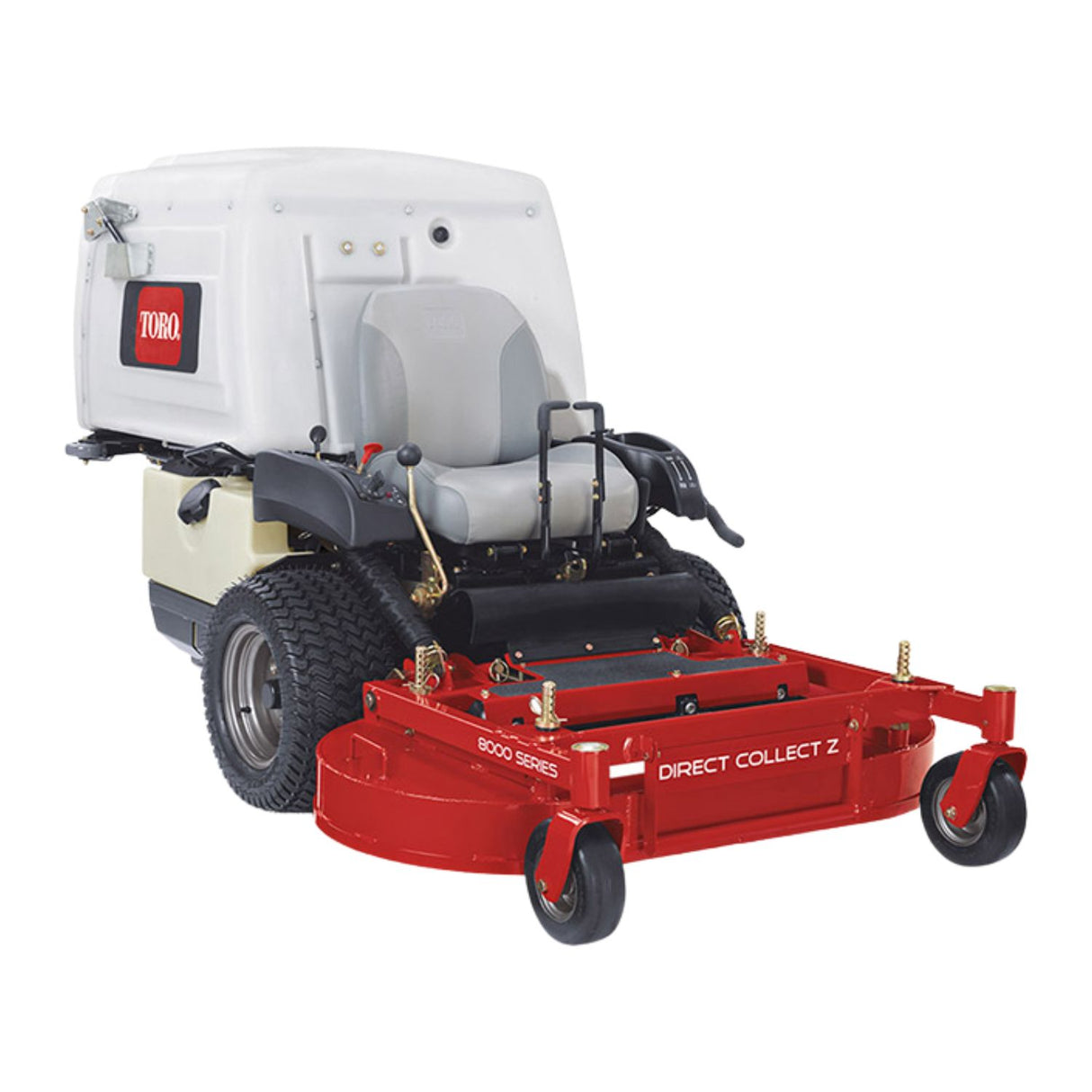

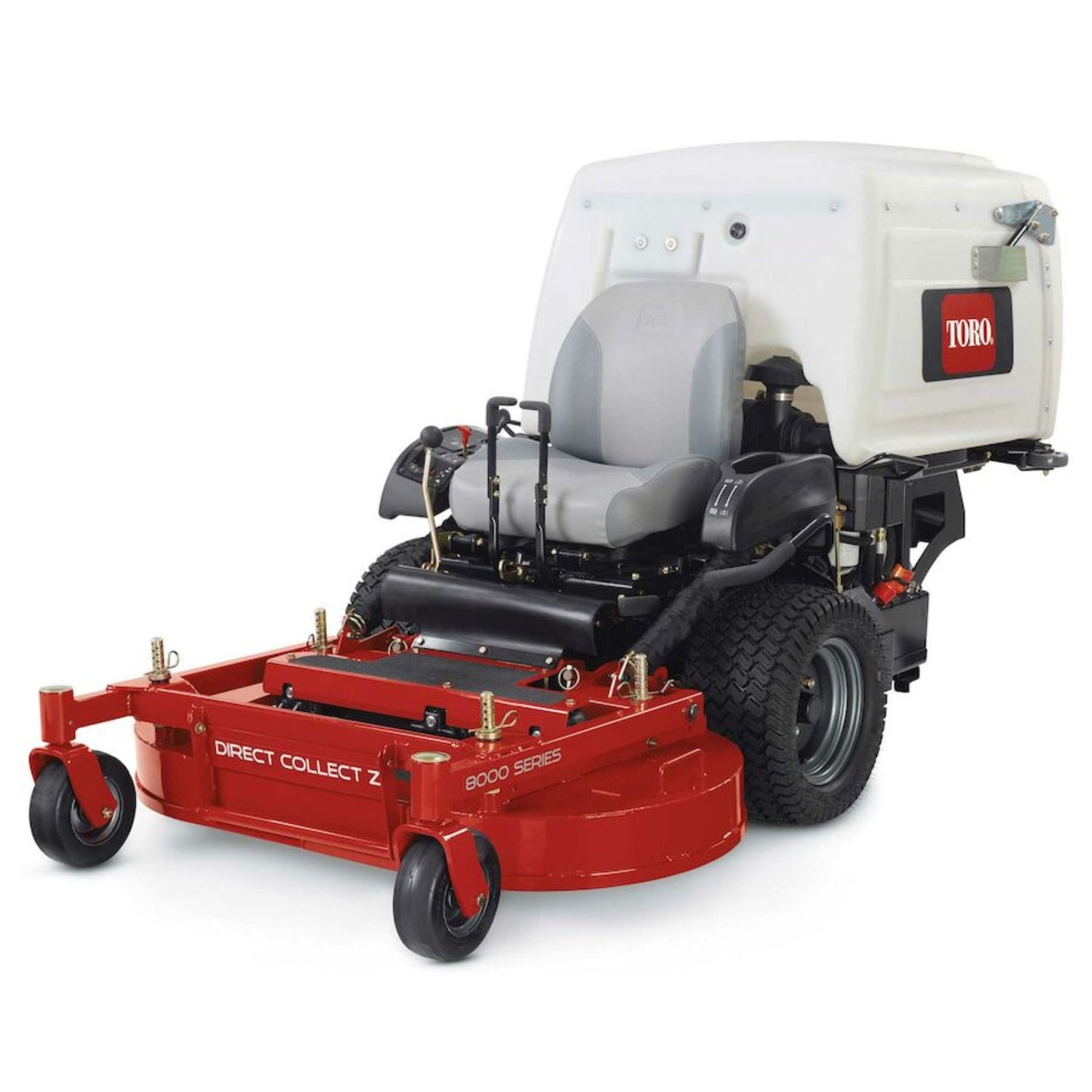

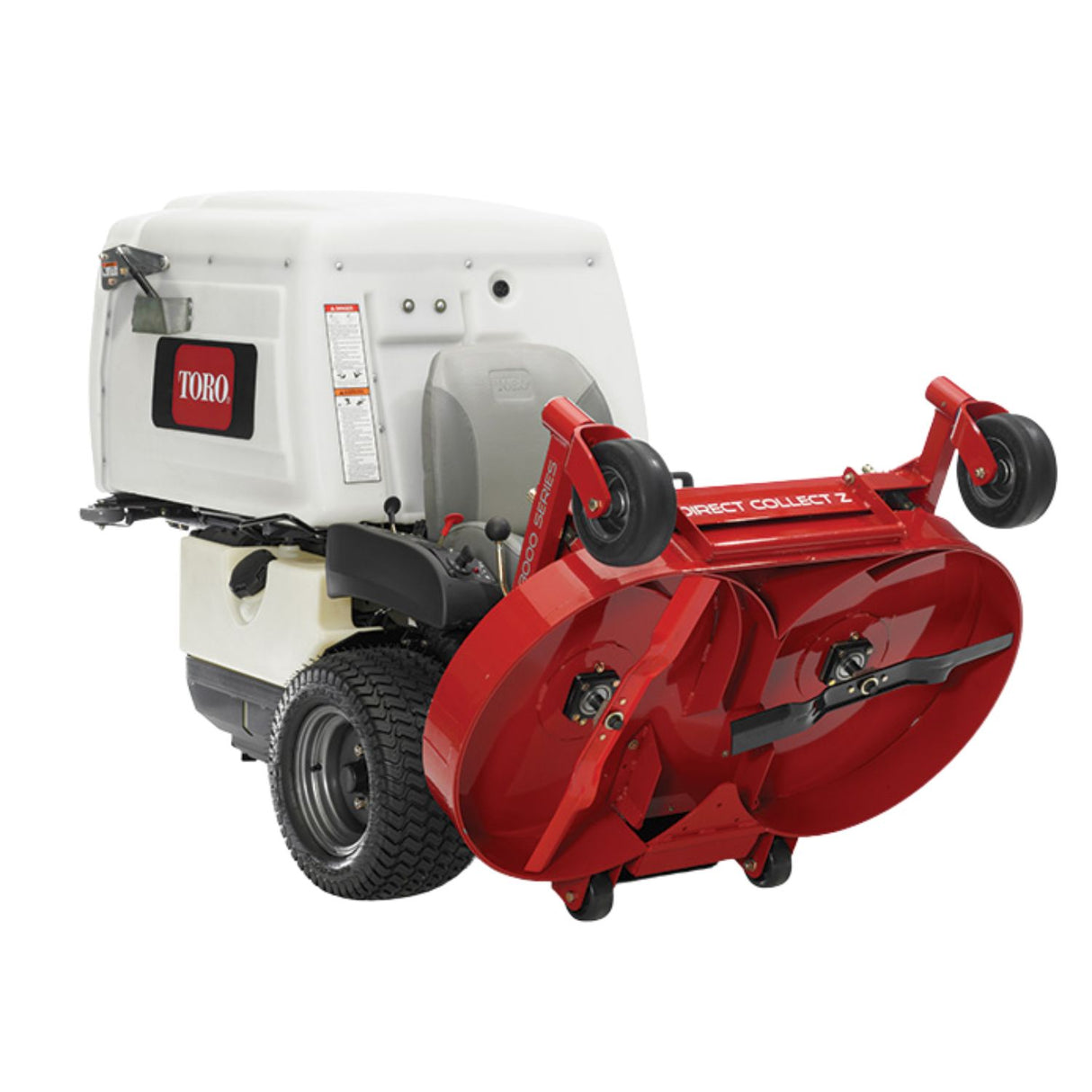

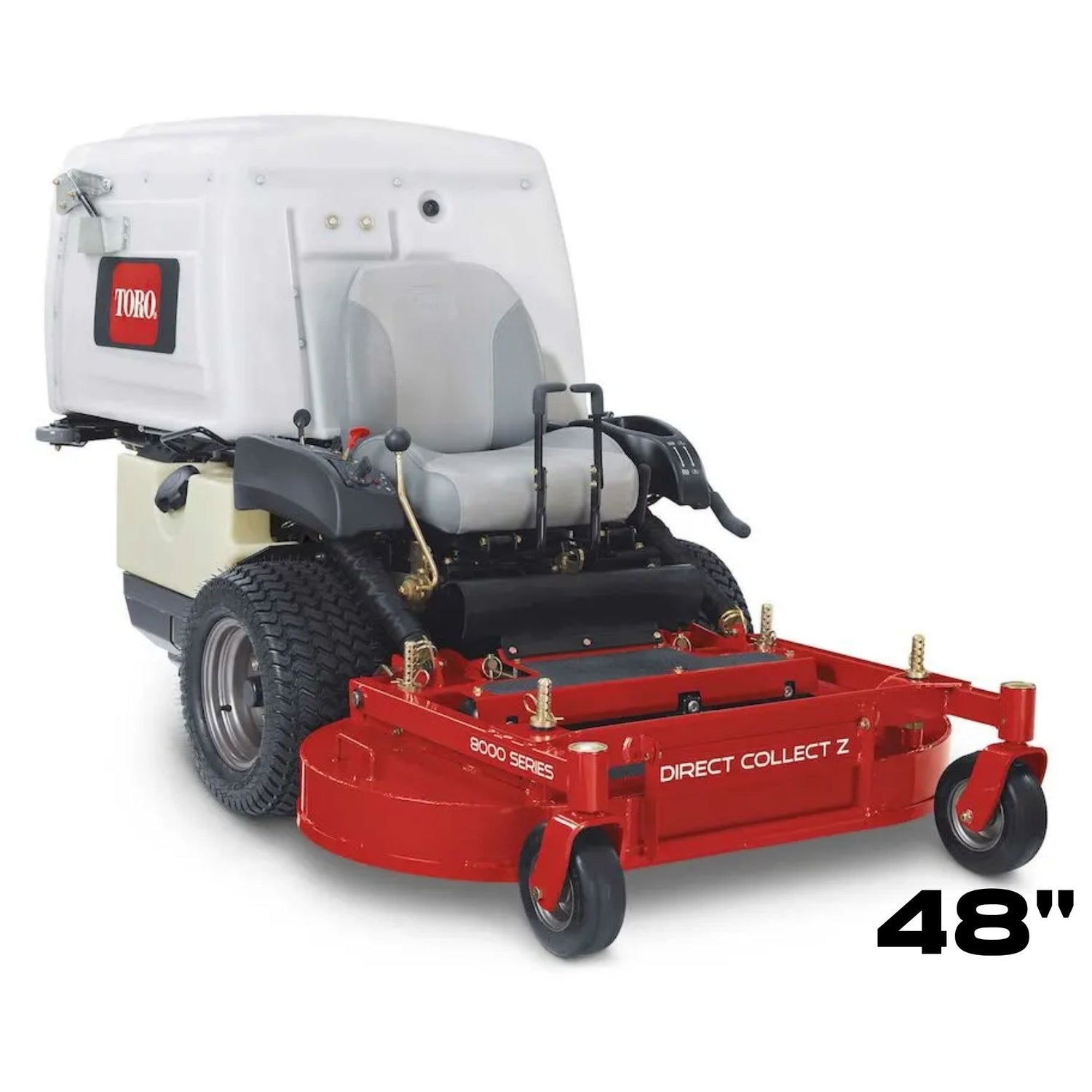

Toro Z-Master 8000 | 48" Deck | 23hp Kohler | Zero Turn Mower | 74312

Name: Toro Z-Master 8000 | 48" Deck | 23hp Kohler | Zero Turn Mower | 74312
Brand: Toro
SKU: 74312
Price: 19599.00 USD
Availability: OutOfStock

$19,599⁰⁰

Taxes and shipping calculated at checkout.

WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov

8000 Series 48 in. (121.9 cm) 23 HP Kohler® Command Pro EFI 747cc Engine. The rear-discharge deck lets you trim on either side while keeping flower beds and walkways clipping-free. And the high-capacity collection system helps extend mowing time. With ground speeds up to 7 mph, the 8000 Series is the answer for a perfect cut in less time.

Easy to use controls make maneuvering virtually effortless

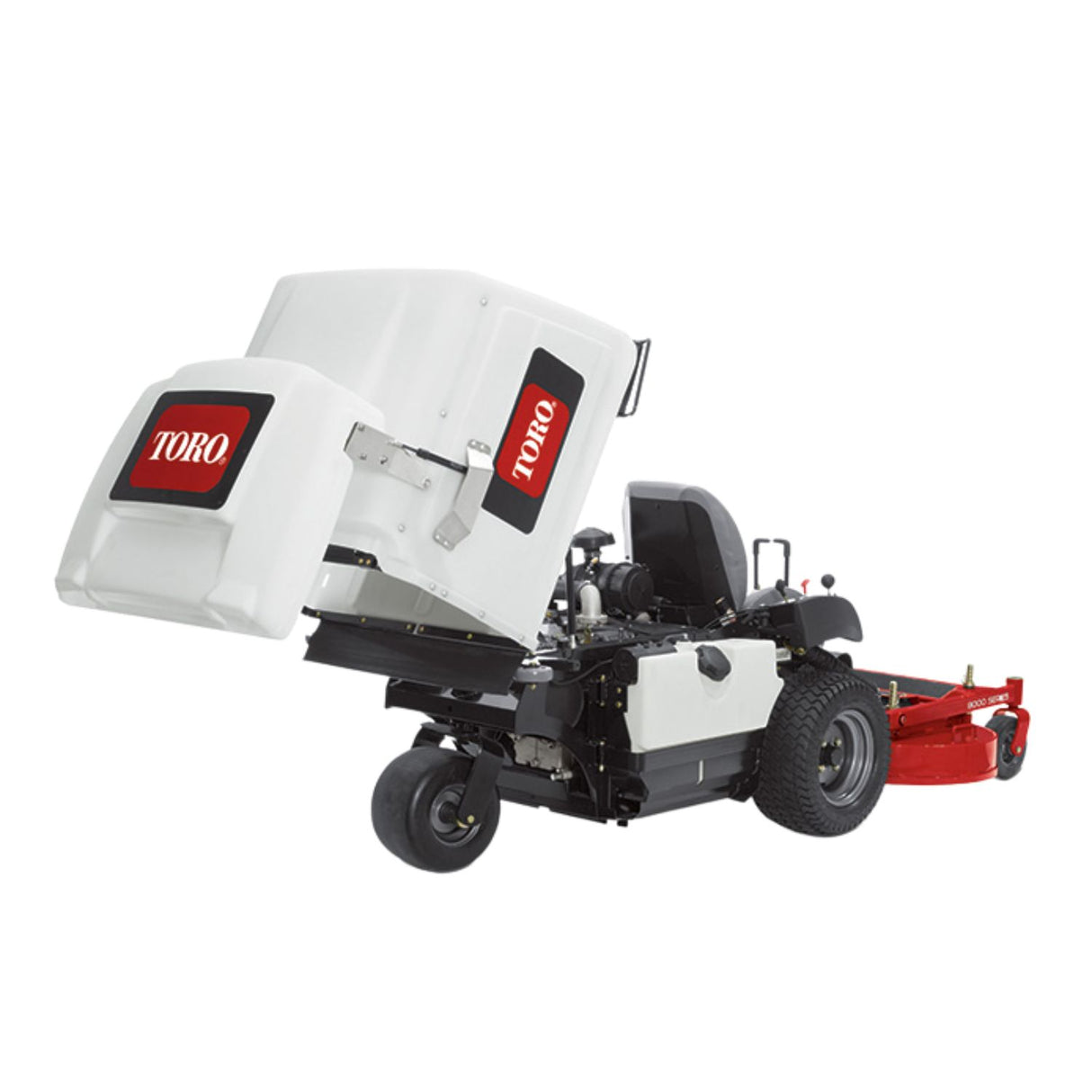

Large 9.5 bushel hopper allows for extended bagging
Horizon360^® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications

Adjustable Discharge Baffle	Fill Reduction Baffles Standard
Air Filter	Heavy-Duty Canister Air Cleaner
Blade Tip Speed	18,500 ft/min / 5,638 m/min
Blades	0.164 in. (0.417 cm) heat-treated steel
Box Dimensions	91 in. x 70.25 in. x 52.25 in. / 231.1 cm x 178.4 cm x 132.7 cm
CARB Compliant	CARB Compliant
Carrier Frame	2 in. x 1.5 in. x 11 gauge (5.1 cm x 3.8 cm x 11 gauge)
Caster Tires	8 in. x 3 in. - 4 in. (20.3 cm x 7.6 cm - 10.2 cm) Semi Pneumatic
Clutch	Mechanical (lever-operated)
Deck Design	7/10 gauge
Deck Material	7/10 Gauge Steel
Deck Size	48 in / 122 cm
Drive System	Tandem Pumps and Wheel Motors
Drive Tires	18 in. x 10.5 in. - 10 in. (45.7 cm x 26.7 cm - 25.4 cm)
Engine	23 hp* (17.1kW) Kohler® Command Pro EFI 747 cc
Engine Brand	Kohler
Engine Displacement (cc)	747 cc
Engine Horsepower	23.0 hp
Forward Ground/Transport Speed	Up to 7.0 mph / 11.2 kph
Fuel Capacity	7.5 gal. / 28.4 L / 30 Qt.
Fuel Type	Gasoline
Height of Cut	1.0 - 4.0 in. / 2.5 - 10.2 cm
Hour Meter	Standard
Product Type	Zero Turn Mowers
Product Use	Commercial
Seat	Rubber Mounted
Spindle Housing	Cast Iron Gearbox
Start Type	Electric
Steering Controls	Hand Control Levers
Weight	1,210 lbs / 548.8 kg

Disclaimer

*The gross horsepower of these gasoline engines was laboratory rated at 3600 rpm by the engine manufacturer in accordance with SAE J1940 or SAE J2723. As configured to meet safety, emission and operating requirements, the actual engine horsepower on these mowers will be significantly lower.

Maintenance Service Interval	Maintenance Procedure
After the first 50 hours	Change the oil in all 3 gearbox housings and add oil as needed.
After the first 100 hours	Check the wheel lug-nut torque. Check the wheel-hub nut torque. Check the parking-brake adjustment. Change the hydraulic filter and reservoir hydraulic fluid when using any type of fluid.
Before each use or daily	Check the safety-interlock system. Grease the front caster wheel hubs(more often in dirty or dusty conditions). Check the engine-oil level. Clean the engine screen and the oil cooler. Clean the hydraulic pumps. Inspect the blades. Clean the mower deck. Clean debris from the machine.
Every 40 hours	Grease the drive shaft(more often in dirty or dusty conditions). Check the tire pressure. Inspect the belts for cracks and wear. Check the hydraulic fluid level.
Every 50 hours	Check the spark arrester (if equipped).
Every 100 hours	Grease the mower-deck flip-up pivot(more often in dirty or dusty conditions). Grease the mower-deck push-arm tubes(more often in dirty or dusty conditions). Check the oil in all 3 gearbox housings and add oil as needed. Change the engine oil(more often in dirty or dusty conditions). Clean the engine-oil cooler. Check and clean engine cooling fins and shrouds.
Every 160 hours	Lubricate the brake-handle pivot. Lubricating the brake-rod bushings and steering linkage rod ends.
Every 200 hours	Change the engine-oil filter(more often in dirty or dusty conditions). Check the spark plug(s). Replace the fuel filter(more often in dirty or dusty conditions).
Every 250 hours	Replace the primary air filter(more often in dirty or dusty conditions). Check the safety air filter(more often in dirty or dusty conditions). Change the hydraulic filter and reservoir hydraulic fluid when using Mobil® 1 fluid (more often in dirty or dusty conditions).
Every 400 hours	Grease the caster pivots (more often in dirty or dusty conditions).
Every 500 hours	Replace the safety air filter(more often in dirty or dusty conditions). Replace the spark plug(s). Check the wheel lug-nut torque. Check the wheel-hub nut torque. Adjust the caster-pivot bearings. Check the parking-brake adjustment.thereafter Change the hydraulic filter and reservoir hydraulic fluid when using Toro® HYPR-OIL™ 500 hydraulic fluid (more often in dirty or dusty conditions).
Every 2,000 hours	Change the oil in all 3 gearbox housings and add oil as needed.
Monthly	Check the battery.
Yearly	Grease the PTO-belt idler arm(more often in dirty or dusty conditions). Grease the pump-belt idler arm(more often in dirty or dusty conditions). Repack the caster-wheel bearings(more often in dirty or dusty conditions). Grease the rear caster wheel hubs(more often in dirty or dusty conditions).
Yearly or before storage	Paint chipped surfaces.
