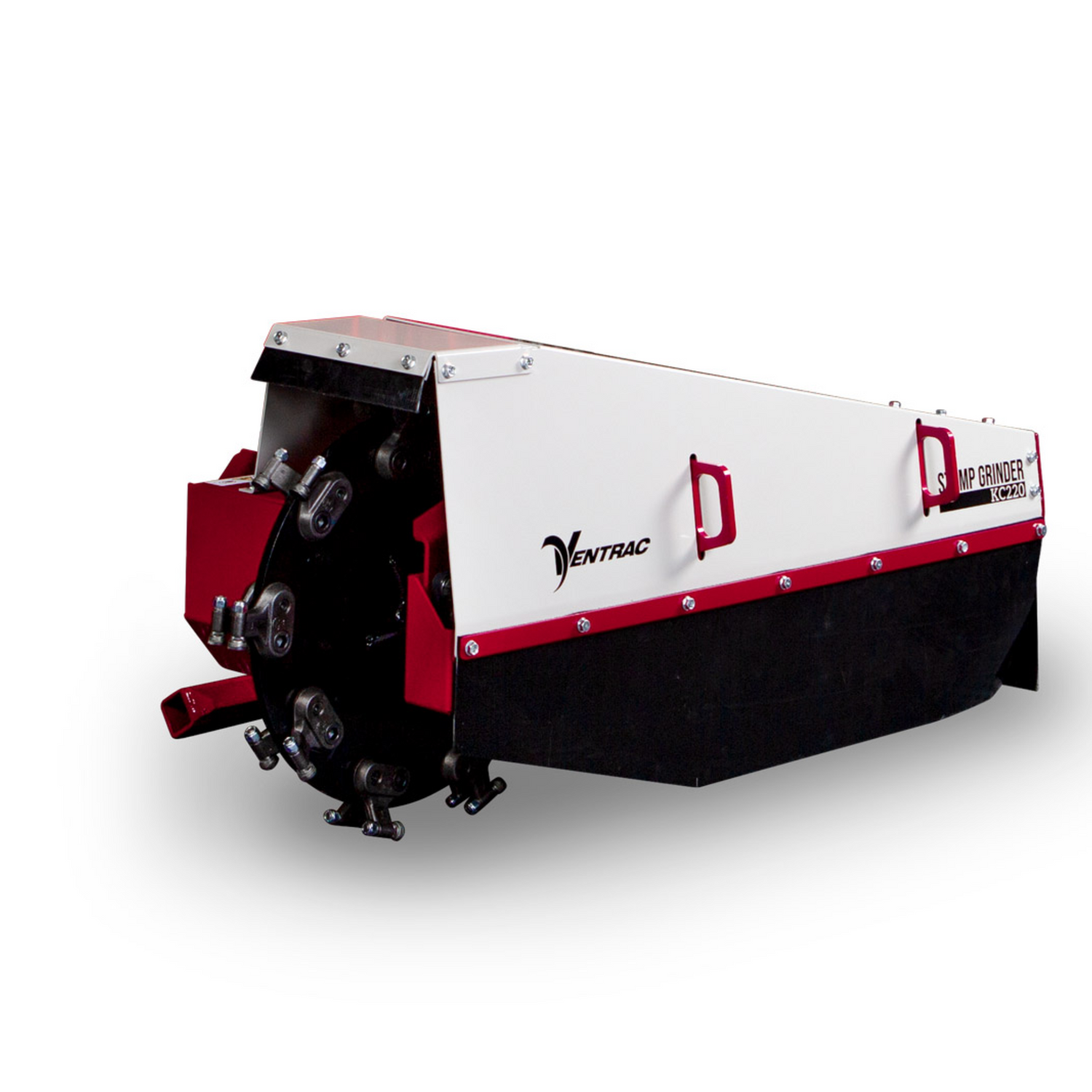

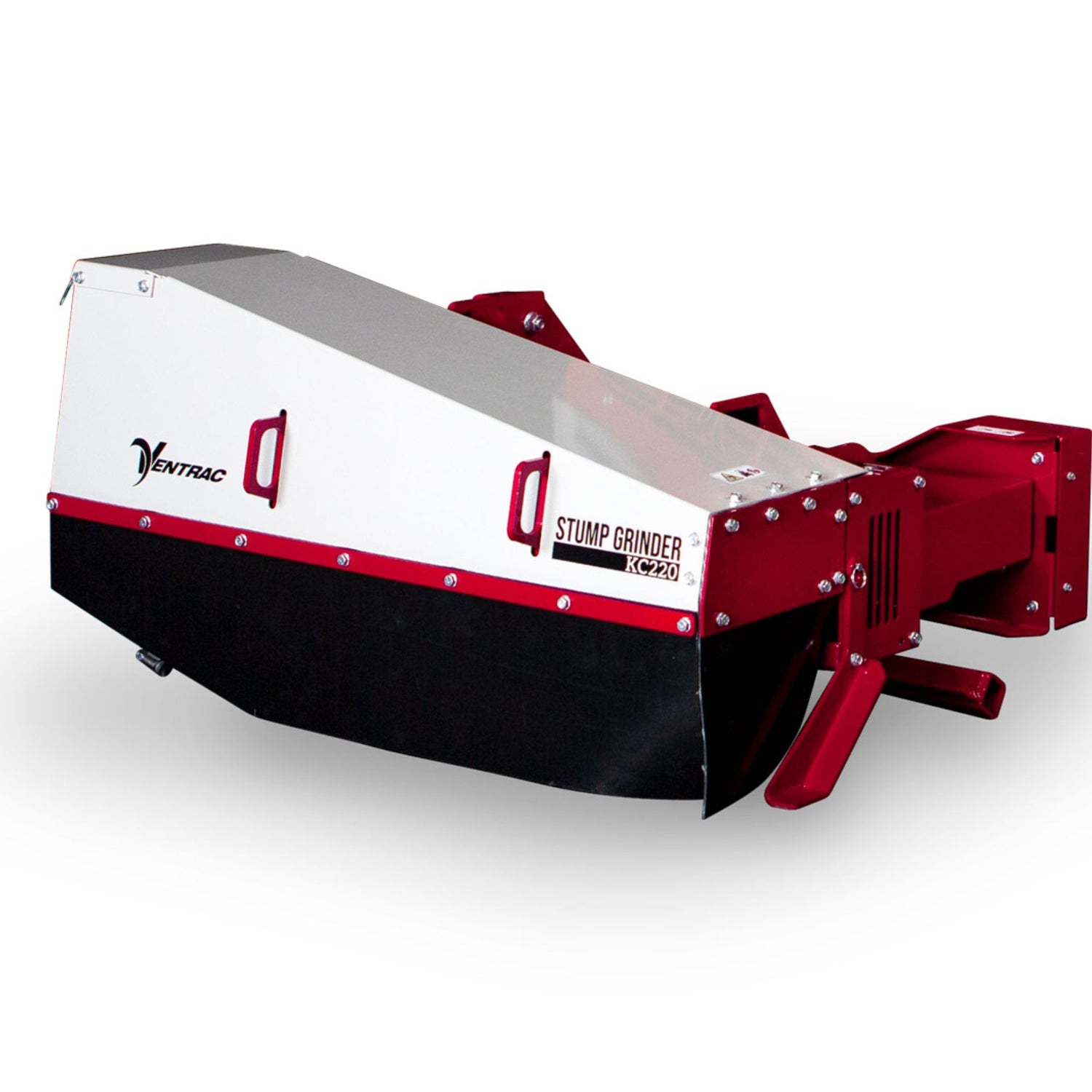

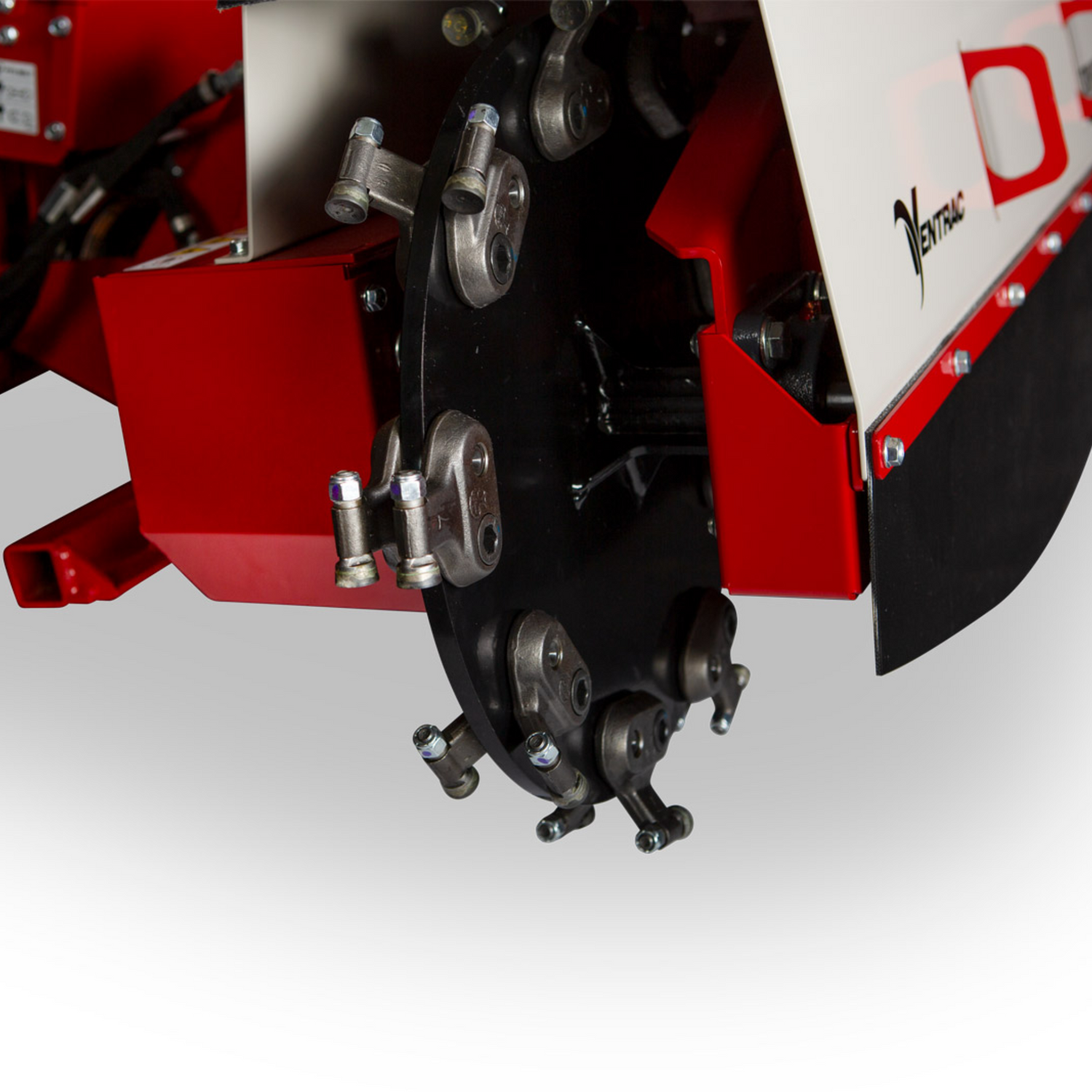

The KC220 Stump Grinder features 18 replaceable heavy-duty carbide cutting teeth on a large 22" rotor for removing large or small stumps.

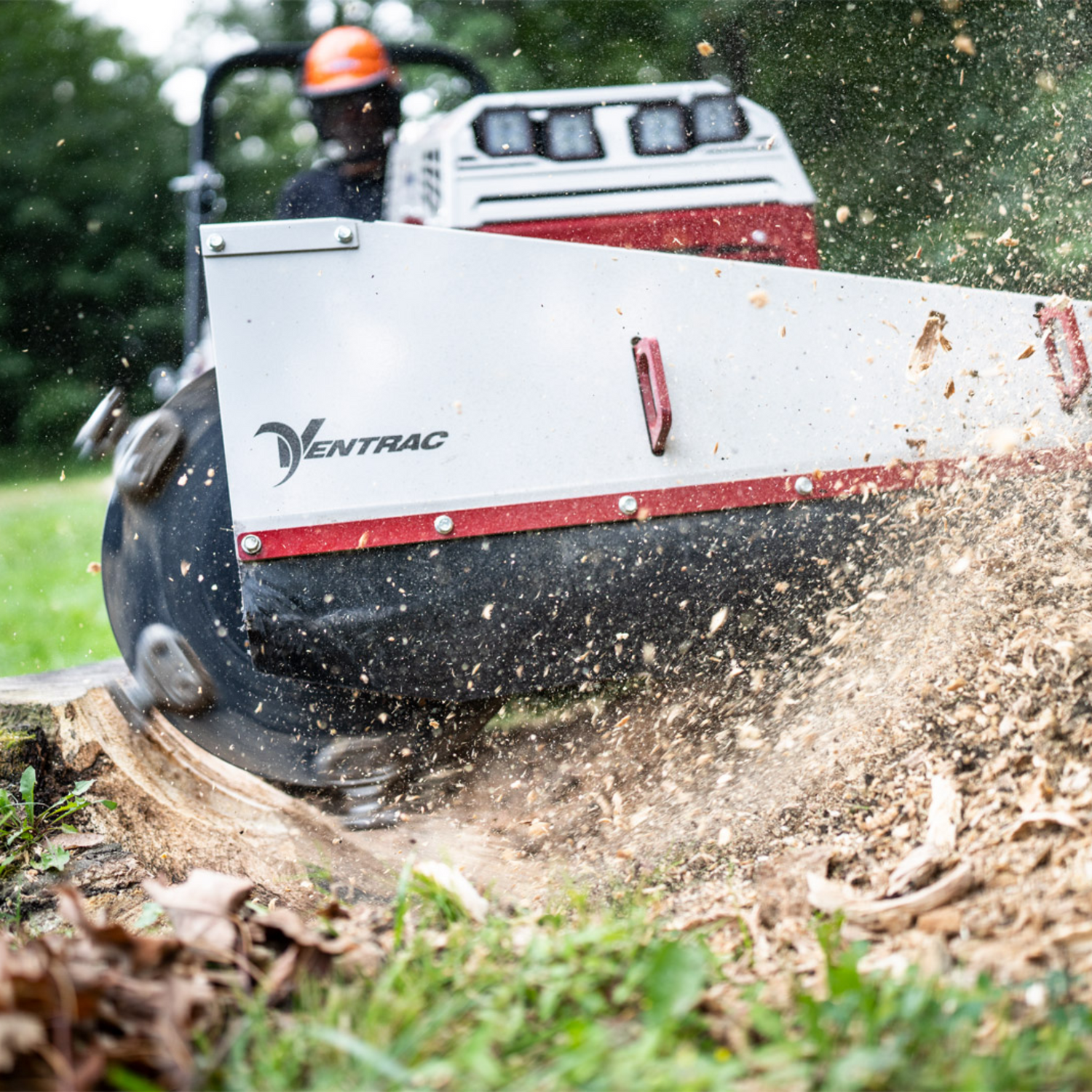

Cutting action is controlled with the forward and reverse motion using the tractor's hydrostatic drive. The Stump Grinder features offset, out-front operation to provide excellent visibility resulting in better performance and efficiency.
An increased rotor speed of 1300 RPM equates to a faster tip speed and more significant amounts of material removed with each pass. In addition, with an increased cutting depth of 8 inches, stumps are removed faster than ever.
The new material blade, operated by the hydrostatic hand controls, helps push material away from the working area to uncover portions of the stump that needs to be removed.

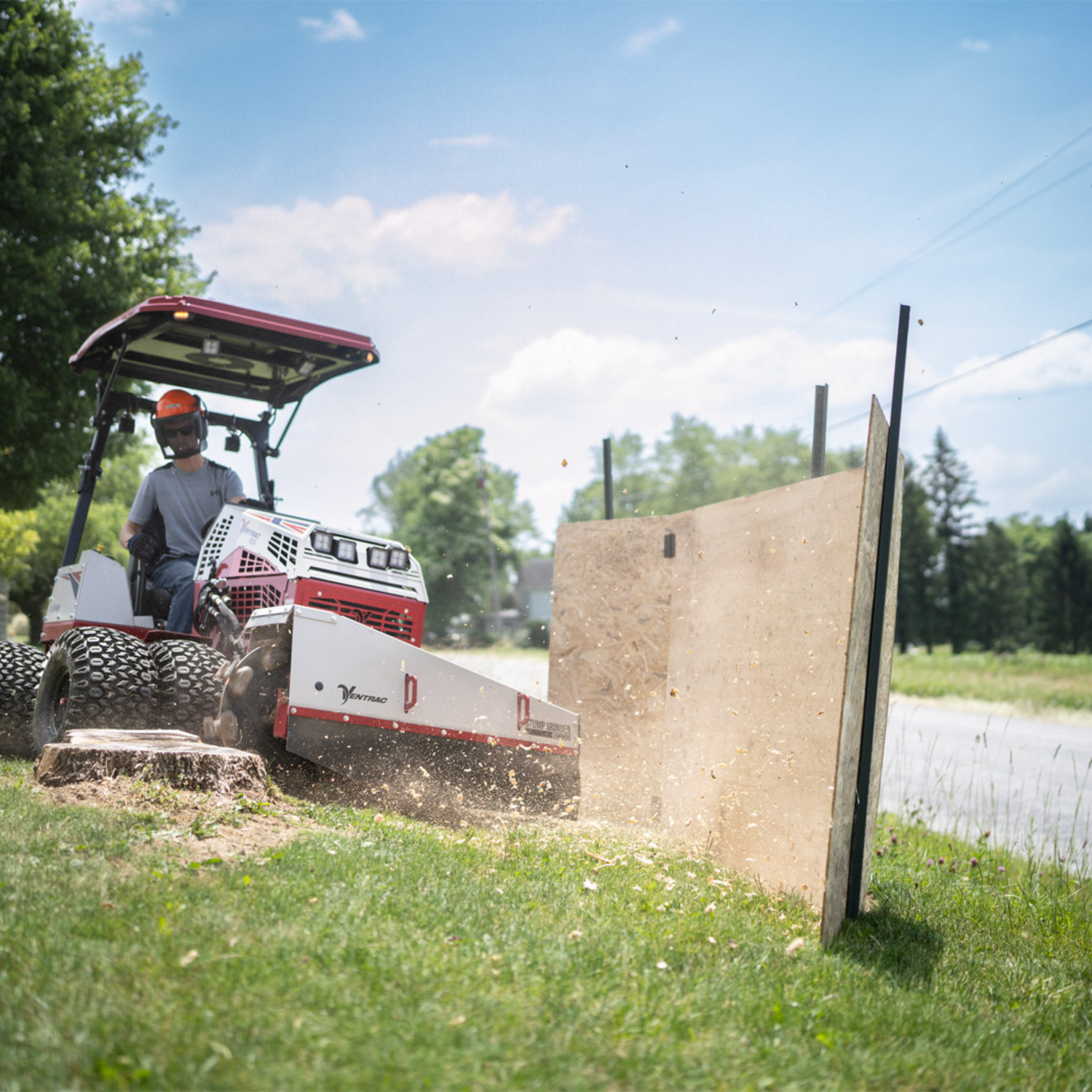

The stump grinder works in a sideways orientation, making this attachment's operation more intuitive, faster, and with an easier learning curve. In addition, set-up and installation on the tractor are easy, and an operator can quickly become a pro at using this attachment effectively.

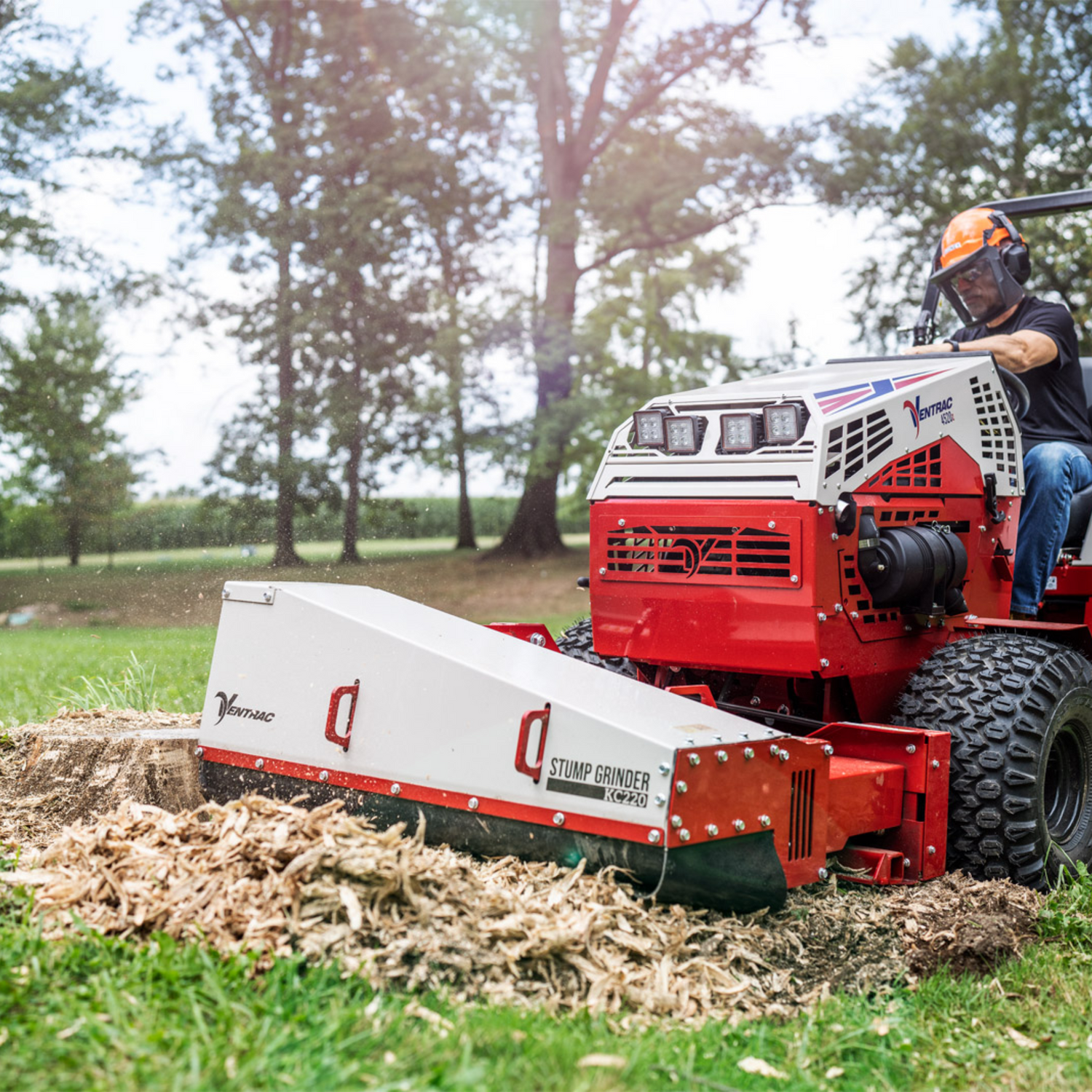

Combined with the 4520 Ventrac tractor, the Stump Grinder is an agile, powerful, turf-friendly mobile unit for lawns, golf courses, parks, and municipalities.
Model |
KC220 |
Full Description |
KC, KC220 Stump Grinder |
Product Type |
Attachment |
CATEGORY |
Front Mount |
Ventrac Mount System |
4000 Series Mount |
|
DIMENSIONS |
Overall Length |
41 in
|
Overall Height |
23 in
|
Overall Width |
51 in
|
Weight |
420 lbs
|
GENERAL |
Cutting Depth |
8 in below ground
|
Rotor Speed |
1300 RPM
|
Carbide Tips |
18 3 sided replaceable
|
Cutter Wheel Dia. |
22 in
|
