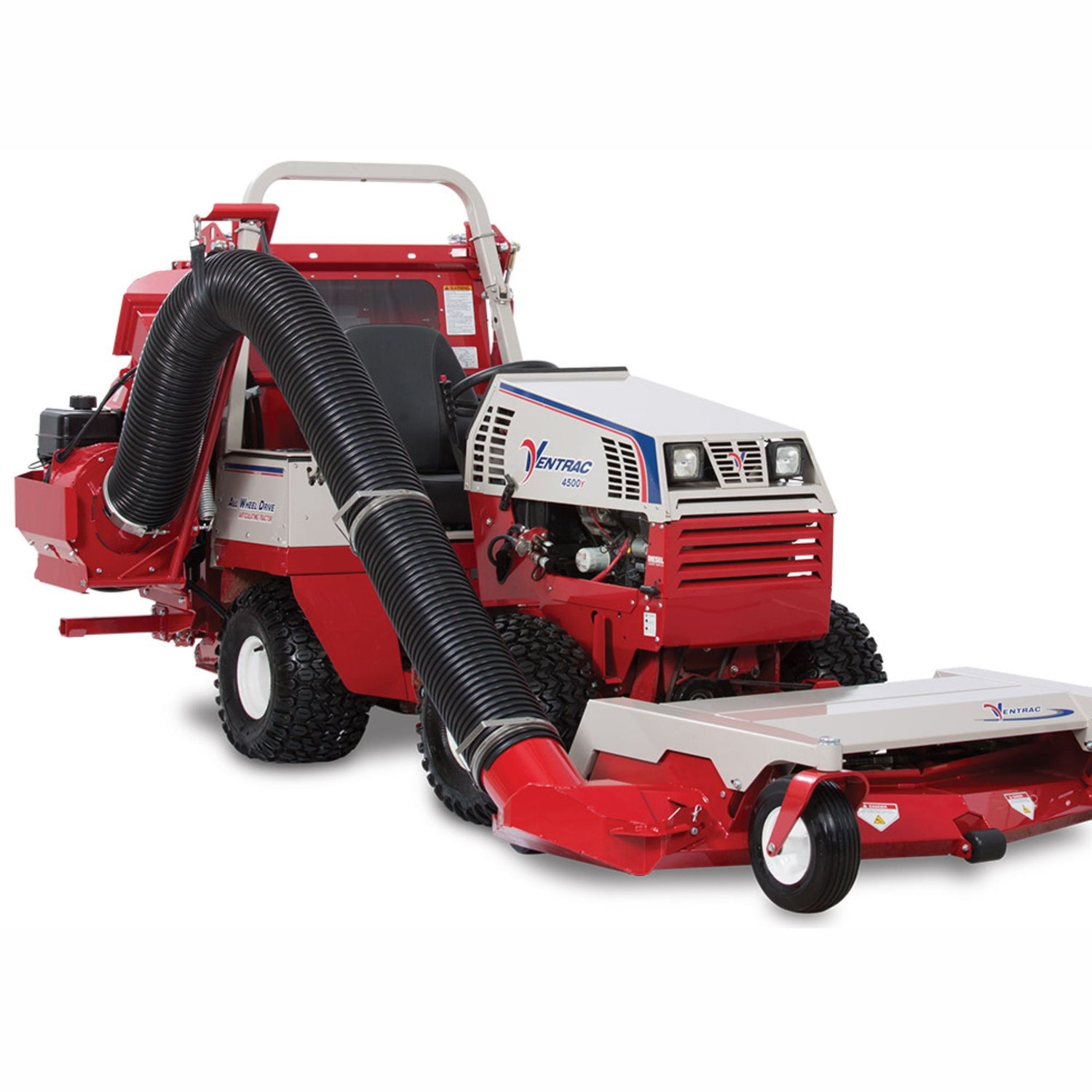

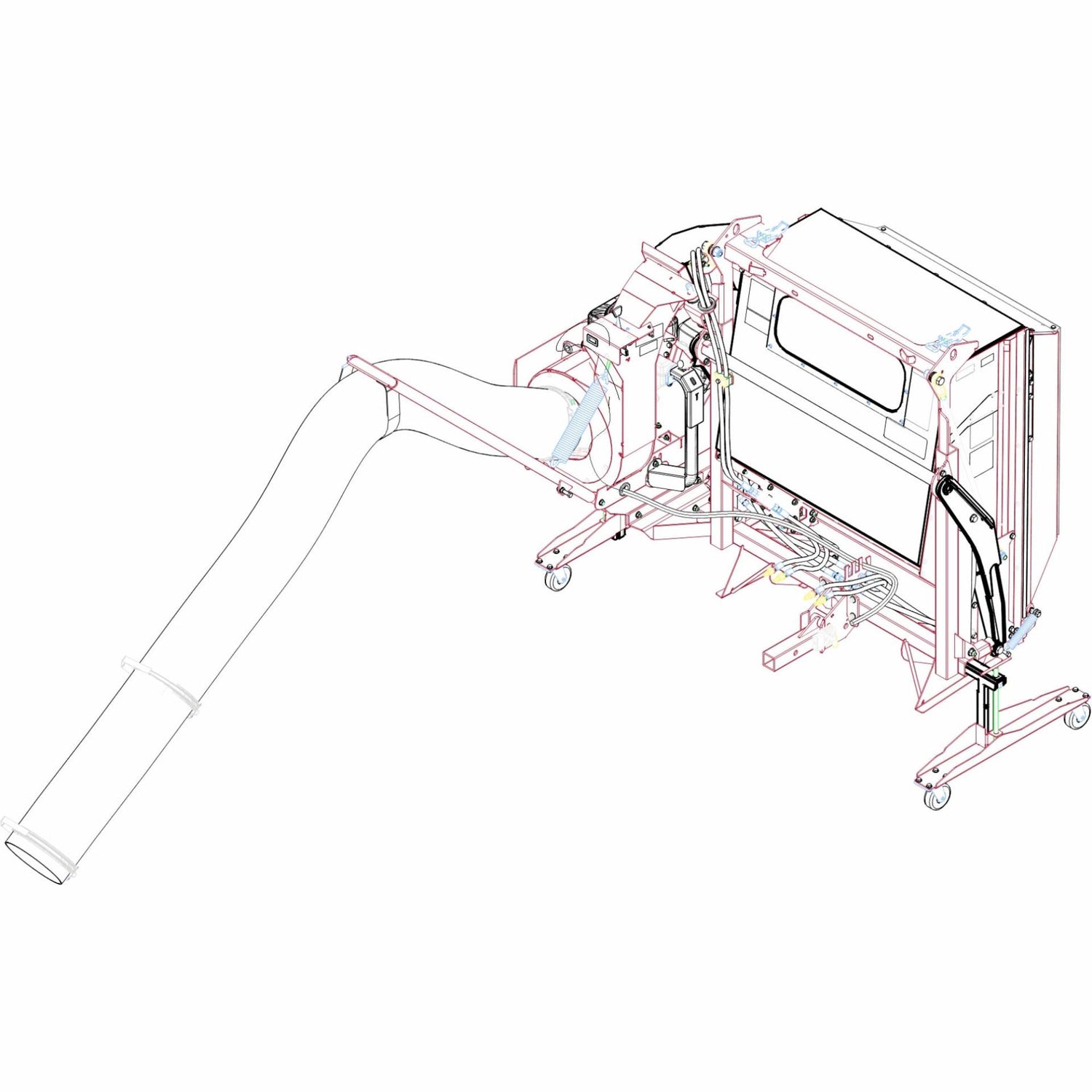

The Ventrac RV602 VACUUM COLLECTION SYSTEM* is for grass and leaf collection, and it consists of three primary components:
- The Bin Assembly - mounts to the rear of 4000 series tractors.
- The Suction/Blower System - powered by a 10HP Vanguard engine with electric start for efficient pickup and superior performance
-
High Lift Mechanism - hydraulically raise the collection bin up to five feet and dump to unload the contents into a garbage bin or trailer.
The vac requires a docking station when dismounted. A storage stand with caster wheels is used when it is to be parked or moved around on a level floor. When loaded onto truck, a rigid base assembly is anchored to the floor that holds the vac firmly for transport.
Other Features include:
- All steel construction
- Hydraulic lift and dump
- Electric start engine
- Collection boot is quickly and easily attached to the mower deck
- Handle on hose and hose end for ease of vacuuming flower beds, etc.
- Hose clamp for attaching hose to collection boot is an over-center clamp for ease of connecting
- Storage stands, complete with caster wheels, for ease of attaching or storage
*For optimal performance, use with a 60" deck.
Specifications |
39.55361 |
INFO |
Model |
RV602 |
Full Description |
RV, RV602 Collection Vacuum |
Product Type |
Attachment |
ENGINE |
Engine Manufacturer |
B&S Vanguard |
Horsepower |
10 hp
|
Fuel Type |
Gas |
Engine Type |
Single Cylinder, Horizontal Shaft |
Engine RPM |
3600 |
CATEGORY |
DIMENSIONS |
Length |
40 in
|
Overall Width |
65 in
|
Height |
53 in
|
Weight |
525 lbs
|
GENERAL |
Max. Capacity |
16 ft3
|
Lifting Height |
5 ft (60 inches)
|
Lift Capacity |
300 lbs
|
Lifiting Time |
5 seconds |
Width with Tractor |
66 in
|
Length with Tractor no mower |
104 in
|
Recommended capacity (for best resul |
13 ft3
|
Lowering Time |
4 secs
|
Impeller, Blades |
5 blade
|
